Part Number: HIP7030A0
Description: The HIP7030A0 Emulator is functionally equivalent to the HIP7030A2 microcontroller ...
- Table of contents:
HIP7030A0
-
Suppliers
DataSheet
General Description
HIP7030A0 General Description
The HIP7030A0 Emulator is functionally equivalent to the HIP7030A2 microcontroller with the addition of external data bus, address bus, and control signals which provide off chip address capability. It is designed to permit prototype and pre-production development of systems for mask pro-grammed applications. The HIP7030A0 is also intended for construction of development systems for the HIP7030A2.
HIP7030A0 Maximum Ratings
DC Supply Voltage, VDD . . . . . . . . . . ... ... . . . . . . . . . .. -0.5 to +7V
Input Voltage, VIN (Note 1). . . . .. . .. ... ..(VSS -0.3) to (VDD +0.3)V
Self-Check Mode (IRQ Pin Only), VIN . . (VSS -0.3) to 2*(VDD +0.3)V
Current Drain Per Pin (Excluding V and V ) . . . . . . . . ... ... . . 25mA
Input Voltage, VIN (Note 1). . . . .. . .. ... ..(VSS -0.3) to (VDD +0.3)V
Self-Check Mode (IRQ Pin Only), VIN . . (VSS -0.3) to 2*(VDD +0.3)V
Current Drain Per Pin (Excluding V and V ) . . . . . . . . ... ... . . 25mA
HIP7030A0 Features
HIP7030A2 Microcontroller Emulation
All HIP7030A2 Hardware and Software Features
Timing and Performance Equivalent to HIP7030A2
On-Chip Memory
176 Bytes of RAM - No ROM
Full 8K Byte Address Space Available Externally
Non-Multiplexed External Address and Data Lines
I/O Memory Interface Matches Industry Standard EPROM/EEPROMS for True Emulation with Two Chips
FS Line Identi?es Fetch Cycles for Breakpoint Logic
-40oC to +125oC Operating Range
Single 3.0V to 6.0V Supply
Available in 68 Lead PLCC Packages
All HIP7030A2 Hardware and Software Features
Timing and Performance Equivalent to HIP7030A2
On-Chip Memory
176 Bytes of RAM - No ROM
Full 8K Byte Address Space Available Externally
Non-Multiplexed External Address and Data Lines
I/O Memory Interface Matches Industry Standard EPROM/EEPROMS for True Emulation with Two Chips
FS Line Identi?es Fetch Cycles for Breakpoint Logic
-40oC to +125oC Operating Range
Single 3.0V to 6.0V Supply
Available in 68 Lead PLCC Packages

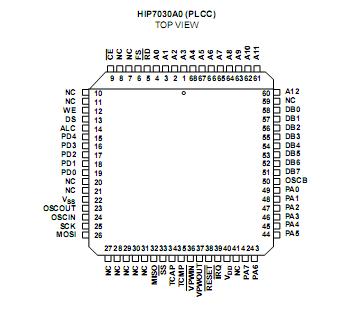

HIP7030A0 Connection Diagram
HIP7030A0
PDF/DataSheet Download
