Part Number: HIP7038A8
Description: The HIP7038A8 HCMOS Microcomputer is an EEPROM version of the HIP7030A family of low-cost single-chip ...
- Table of contents:
HIP7038A8
-
Suppliers
DataSheet
General Description
HIP7038A8 General Description
The HIP7038A8 HCMOS Microcomputer is an EEPROM version of the HIP7030A family of low-cost single-chip J1850 microcontrollers. These microcontrollers provide the system designer with a complete set of building blocks for implementing a "Class B" VPW multiplexed communications network interface, which fully complies with SAE Recommended Practice J1850. The HIP7038A8 contains all hardware and software features of the HIP7030A2/A8 microcontrollers with equivalent timing, performance characteristics, and an identical footprint.
The device can be programmed using the HIP7038A8 EEPROM Programmer available from Intersil. In-circuit Emulation Tools are also provided for system development.
HIP7038A8 Maximum Ratings
Supply Voltage (VDD) . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +6.0V
Input or Output Voltage
Pins with VDD Diode . . . . . . . . . . . . . . . . . . . . . . -0.3V to VDD +0.3V
Pins without VDD Diode. . . . . . . . . . . . . . . . . . . . . . -0.3V to +10.0V
Current Drain Per Pin, I (Excluding VDD and VSS) . . . . . . . .. . . 25mA
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 2
Gate Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21000 Gates
Operating Temperature Range (TA) . . . . . . . . . . . . -40 to +125
Storage Temperature Range (TSTG) . . . . . . . . . . . . -65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150
Lead Temperature (During Soldering) . . . . . . . . . . . . . . . . . . +265
1/16in. ± 1/32in. (1.59 ± 0.79mm) from case for 10s Max.
Input or Output Voltage
Pins with VDD Diode . . . . . . . . . . . . . . . . . . . . . . -0.3V to VDD +0.3V
Pins without VDD Diode. . . . . . . . . . . . . . . . . . . . . . -0.3V to +10.0V
Current Drain Per Pin, I (Excluding VDD and VSS) . . . . . . . .. . . 25mA
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 2
Gate Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21000 Gates
Operating Temperature Range (TA) . . . . . . . . . . . . -40 to +125
Storage Temperature Range (TSTG) . . . . . . . . . . . . -65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150
Lead Temperature (During Soldering) . . . . . . . . . . . . . . . . . . +265
1/16in. ± 1/32in. (1.59 ± 0.79mm) from case for 10s Max.
HIP7038A8 Features
• Direct Replacement for HIP7030A2/A8 Microcontrollers
- All Hardware and Software Features
- Equivalent Timing and Performance
• Memory
- 176 Bytes of RAM
- 7744 Bytes of Programmable EEPROM
- 242 Bytes of Bootstrap Program
• Single 5V Supply
• 10MHz Operating Frequency (5.0MHz Internal Bus
Frequency) at 5V.
• 28 Lead Small Outline Ceramic Package
- Same Terminal Assignment as HIP7030A2
and HIP7030A8
- All Hardware and Software Features
- Equivalent Timing and Performance
• Memory
- 176 Bytes of RAM
- 7744 Bytes of Programmable EEPROM
- 242 Bytes of Bootstrap Program
• Single 5V Supply
• 10MHz Operating Frequency (5.0MHz Internal Bus
Frequency) at 5V.
• 28 Lead Small Outline Ceramic Package
- Same Terminal Assignment as HIP7030A2
and HIP7030A8

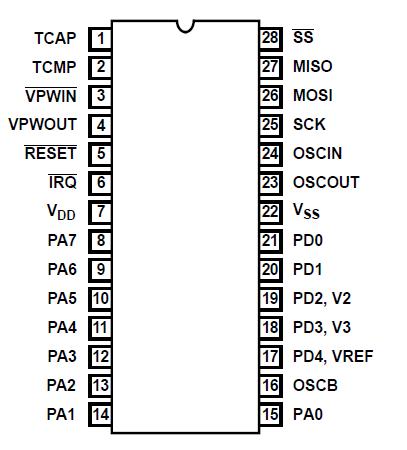

HIP7038A8 Connection Diagram
HIP7038A8
