Product Details

Description



Features:

• LCD display ..................................... 41 segments x 4 commons
                                                            1/4 duty - 1/2 bias
                                                            1/4 duty - 1/3 bias
• Key scan ............................................ Maximum 30 keys
                                                            Input 5 pins, Output 6 pins
• Power down mode ............................. Sleep mode and all segments off mode
• Port
                                                            Output .................................................. 4 pins
                                                            ( Including the LCD segment port )
• Serial I/O .............................................. Data transfer and receive
• Power on reset ..................................... Supply voltage detection ( SVD )
• RC oscillator
• Package ............................................... 64QFP


Pinout

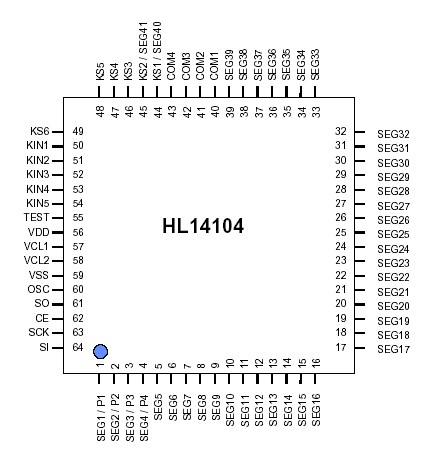

Connection Diagram


Specifications

Parameter Symbol Condition Rating unit
Maximum supply voltage VDD max VDD -0.3 to +7.0
 V
Input voltage Vin1 CE,SCK,SI -0.3 to +7.0 V
Vin2 OSC,KIN1 to KIN5, TEST,VCL1,2 -0.3 to VDD+0.3 V
Output voltage Vout1 SO -0.3 to +7.0 V
Vout2 OSC, SEG1 to SEG41, COM1 to
COM4, KS1 to KS6, P1 to P4		 -0.3 to VDD+0.3 V
Output current Iout1 SEG1 to SEG41 300 uA
Iout2 COM1 to COM4 3 mA
Iout3 KS1 to KS6 1 mA
Iout4 P1 to P4 5 mA
Allowable power dissipation Pd max Ta = 85.. 200 mW
Operating temperature Topr
   -40 to +85 ..
Storage temperature Tstg   -55 to +125 ..



Description

The HL14104 is 1/4 duty LCD display driver. It can drive directly maximum 164 segments. Also it has four general purpose output ports and a key scan function that accepts input from up to 30 keys.
