General Description
HM5216165 General Description
All inputs and outputs are referred to the rising edge of the clock input. The HM5216165 is offered in 2 banks for improved performance
HM5216165 Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
Note |
| Voltage on any pin relative to Vss |
VT |
1.0 to +4.6 |
V |
1 |
| Supply voltage relative to Vss |
VCC |
1.0 to +4.6 |
V |
1 |
| Short circuit output current |
Iout |
50 |
mA |
|
| Power dissipation |
PT |
1.0 |
W |
|
| Operating temperature |
Topr |
0 to +70 |
°C |
|
| Storage temperature |
Tstg |
55 to +125 |
°C |
|
| Note:1Respect to vss | ||||
HM5216165 Features
• 3.3 V Power supply
• Clock frequency: 100 MHz/83 MHz
• LVTTL interface
• Single pulsed RAS
• 2 Banks can operates simultaneously and independently
• Burst read/write operation and burst read/single write operation capability
• Programmable burst length: 1/2/4/8/full page
• 2 variations of burst sequence
Sequential (BL = 1/2/4/8/full page)
Interleave (BL = 1/2/4/8)
• Programmable CAS latency: 1/2/3
• Byte control by DQMU and DQML
• Refresh cycles: 4096 refresh cycles/64 ms
• 2 variations of refresh
Auto refresh
Self refresh
• Clock frequency: 100 MHz/83 MHz
• LVTTL interface
• Single pulsed RAS
• 2 Banks can operates simultaneously and independently
• Burst read/write operation and burst read/single write operation capability
• Programmable burst length: 1/2/4/8/full page
• 2 variations of burst sequence
Sequential (BL = 1/2/4/8/full page)
Interleave (BL = 1/2/4/8)
• Programmable CAS latency: 1/2/3
• Byte control by DQMU and DQML
• Refresh cycles: 4096 refresh cycles/64 ms
• 2 variations of refresh
Auto refresh
Self refresh

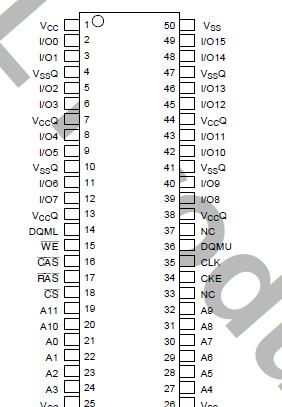

HM5216165 Connection Diagram
HM5216165TT-10H
PDF/DataSheet Download
- Datasheet: HM5216165TT-10H
- File Size: 294661 KB
- Manufacturer: ELPIDA [Elpida Memory]
- Click here to Download
