HM5225325F

Features: ` Single chip wide bit solution (* 64/* 32)` 3.3 V power supply` Clock frequency: 100 MHz (max)` LVTTL interface` Extremely small foot print: 1.27 mm pitch-Package: BGA (BP-108)` 4 banks can operate simultaneously and independently` Burst read/write operation and burst read/single write ...

product image

HM5225325F Picture
See larger image
SeekIC No. : 004363429 Detail

HM5225325F: Features: ` Single chip wide bit solution (* 64/* 32)` 3.3 V power supply` Clock frequency: 100 MHz (max)` LVTTL interface` Extremely small foot print: 1.27 mm pitch-Package: BGA (BP-108)` 4 banks c...

HM5225325F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM5225325F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single chip wide bit solution (* 64/* 32)
`  3.3 V power supply
`  Clock frequency: 100 MHz (max)
`  LVTTL interface
`  Extremely small foot print: 1.27 mm pitch
     - Package: BGA (BP-108)
`  4 banks can operate simultaneously and independently
`  Burst read/write operation and burst read/single write operation capability
`  Programmable burst length: 4/8/full page
`  2 variations of burst sequence
     - Sequential (BL = 4/8/full page)
     - Interleave (BL = 4/8)
`  Programmable CAS latency: 2/3
`  Byte control by DQMB
`  Refresh cycles: 4096 refresh cycles/64 ms
`  2 variations of refresh
     - Auto refresh
     - Self refresh
`  Full page burst length capability
     - Sequential burst
     - Burst stop capability


Pinout

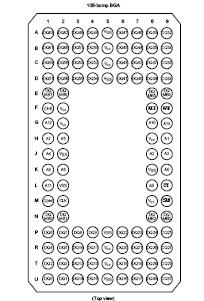

Connection Diagram


Specifications

Parameter Symbol Value Unit Note
Voltage on any pin relative to VSS VT 0.5 to VCC + 0.5
( 4.6 (max))		 V 1
Supply voltage relative to VSS VCC 0.5 to +4.6 V 1
Short circuit output current Iout 50 mA
Operating temperature Topr 0 to +70 (Tj max = 110) °C
Operating temperature Tstg 55 to +125 °C



Description

The Hitachi HM5225645F is a 256-Mbit SDRAM organized as 1048576-word × 64-bit × 4-bank. The Hitachi HM5225325F is a 256-Mbit SDRAM organized as 2097152-word × 32-bit × 4-bank. All inputs and outputs are referred to the rising edge of the clock input. It is packaged in standard 108 bump BGA.
