Part Number: HM5264165F
Description: The Hitachi HM5264165F is a 64-Mbit SDRAM organized as 1048576-word · 16-bit · 4 bank. The Hitachi HM...
- Table of contents:
HM5264165F
-
Suppliers
DataSheet
General Description
HM5264165F General Description
The Hitachi HM5264165F is a 64-Mbit SDRAM organized as 1048576-word · 16-bit · 4 bank. The Hitachi HM5264805F is a 64-Mbit SDRAM organized as 2097152-word · 8-bit · 4 bank. The Hitachi HM5264405F is a 64-Mbit SDRAM organized as 4194304-word · 4-bit · 4 bank. All inputs and outputs are referred to the rising edge of the clock input. It is packaged in standard 54-pin plastic TSOP II.
HM5264165F Maximum Ratings
| Parameter | Symbol | Value | Unit | Note |
| Voltage on any pin relative to VSS |
VT |
0.5 to VCC + 0.5 CC (4.6 (max)) |
V | 1 |
| Supply voltage relative to VSS |
VCC |
0.5 to +4.6 | V | 1 |
| Short circuit output current | Iout | 50 | mA | |
| Power dissipation | PT |
1.0 | W | |
| Operating temperature | Topr | 0 to +70 | C | |
| Storage temperature | Tstg | 55 to +125 | C | |
| Note: 1. Respect to VSS . |
HM5264165F Features
* 3.3 V power supply
* Clock frequency: 133 MHz/100 MHz (max)
* LVTTL interface
* Single pulsed RAS
* 4 banks can operate simultaneously and independently
* Burst read/write operation and burst read/single write operation capability
* Programmable burst length: 1/2/4/8/full page
* 2 variations of burst sequence Sequential (BL = 1/2/4/8/full page) Interleave (BL = 1/2/4/8)
* Clock frequency: 133 MHz/100 MHz (max)
* LVTTL interface
* Single pulsed RAS
* 4 banks can operate simultaneously and independently
* Burst read/write operation and burst read/single write operation capability
* Programmable burst length: 1/2/4/8/full page
* 2 variations of burst sequence Sequential (BL = 1/2/4/8/full page) Interleave (BL = 1/2/4/8)

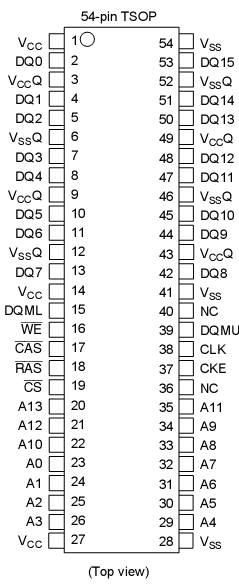

HM5264165F Connection Diagram
HM5264165F-75
PDF/DataSheet Download
- Datasheet: HM5264165F-75
- File Size: 891524 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
