Part Number: HM6216514I
Description: The Hitachi HM6216514I Series is 8-Mbit static RAM organized 524,288-word ´ 16-bit. HM6216514I Series has realize...
- Table of contents:
HM6216514I
-
Suppliers
DataSheet
General Description
HM6216514I General Description
The Hitachi HM6216514I Series is 8-Mbit static RAM organized 524,288-word ´ 16-bit. HM6216514I Series has realized higher density, higher performance and low power consumption by employing CMOS process technology (6-transistor memory cell). It offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It is packaged in standard 44-pin plastic TSOPII.
HM6216514I Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Supply voltage relative to VSS | VCC | 0.5 to +7.0 | V |
| Voltage on any pin relative to VSS | VT | 0.5*1 to VCC+0.3*2 | V |
| Power dissipation | PT | 1.0 | W |
| Storage temperature range | Tstg | 55 to +125 | |
| Storage temperature range under bias | Tbias | 40 to +85 |
HM6216514I Features
• Single 5.0 V supply: 5.0V ± 10 %
• Fast access time: 55 ns (Max)
• Power dissipation:
- Active: 10 mW/MHz (Typ)
- Standby: 7.5 mW (Typ)
• Completely static memory.
- No clock or timing strobe required
• Equal access and cycle times
• Common data input and output.
- Three state output
• Battery backup operation.
• Temperature range: 40 to +85°C
• Fast access time: 55 ns (Max)
• Power dissipation:
- Active: 10 mW/MHz (Typ)
- Standby: 7.5 mW (Typ)
• Completely static memory.
- No clock or timing strobe required
• Equal access and cycle times
• Common data input and output.
- Three state output
• Battery backup operation.
• Temperature range: 40 to +85°C

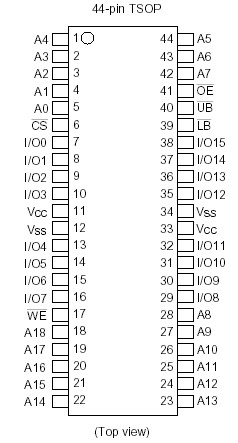

HM6216514I Connection Diagram
HM6216514I
