Part Number: HM624100H
Description: The HM624100H is a 4-Mbit high speed static RAM organized 1-Mword ´ 4-bit. It has realized high speed access time...
- Table of contents:
HM624100H
-
Suppliers
DataSheet
General Description
HM624100H General Description
The HM624100H is a 4-Mbit high speed static RAM organized 1-Mword ´ 4-bit. It has realized high speed access time by employing CMOS process (4-transistor + 2-poly resistor memory cell) and high speed circuit designing technology. It is most appropriate for the application which requires high speed and high density memory, such as cache and buffer memory in system. The HM624100H is packaged in 400-mil 32-pin SOJ for high density surface mounting.
HM624100H Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Supply voltage relative to VSS | VCC | 0.5to +7.0 | V |
| Voltage on any pin relative to VSS | VT | 0.5*2 to VCC + 0.5 | V |
| Power dissipation | PT | 1.0 | W |
| Operating temperature | Topr | 0 to +70 | |
| Storage temperature | Tstg | 55 to +125 | |
| Storage temperature under bias | Tbias | 10 to +85 |
HM624100H Features
· Single 5.0 V supply : 5.0 V ± 10 %
· Access time 10/12/15 ns (max)
· Completely static memory
- No clock or timing strobe required
· Equal access and cycle times
· Directly TTL compatible
- All inputs and outputs
· Operating current : 200/180/160 mA (max)
· TTL standby current : 70/60/50 mA (max)
· CMOS standby ccurrent : 5 mA (max)
: 1.2 mA (max) (L-version)
· Data retension current : 0.8 mA (max) (L-version)
· Data retension voltage : 2.0 V (min) (L-version)
· Center VCC and VSS type pinout
· Access time 10/12/15 ns (max)
· Completely static memory
- No clock or timing strobe required
· Equal access and cycle times
· Directly TTL compatible
- All inputs and outputs
· Operating current : 200/180/160 mA (max)
· TTL standby current : 70/60/50 mA (max)
· CMOS standby ccurrent : 5 mA (max)
: 1.2 mA (max) (L-version)
· Data retension current : 0.8 mA (max) (L-version)
· Data retension voltage : 2.0 V (min) (L-version)
· Center VCC and VSS type pinout

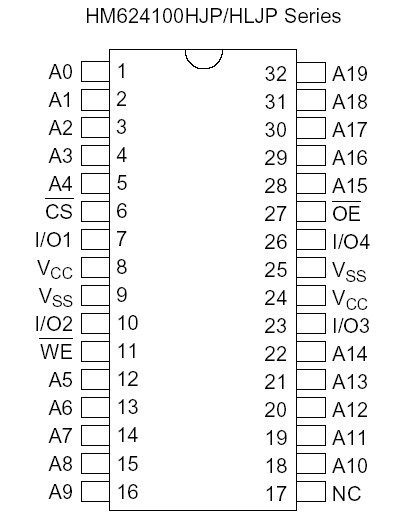

HM624100H Connection Diagram
HM624100H
PDF/DataSheet Download
- Datasheet: HM624100H
- File Size: 76253 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
