Product Details

Description

Features:

• Low-power standby
- 0.1 mW (typ)
- 10 µW (typ) L-/LL-version
• Low power operation
- 15 mW/MHz (typ)
• Fast access time
- l00/120/150 ns (max)
• Single +5 V supply
• Completely static memory
- No clock or timing strobe required
• Equal access and cycle time
• Common data input and output, three-state output
• Directly TTL compatible
- All inputs and outputs
• Battery back up operation capability (L-/LL-version)

Pinout

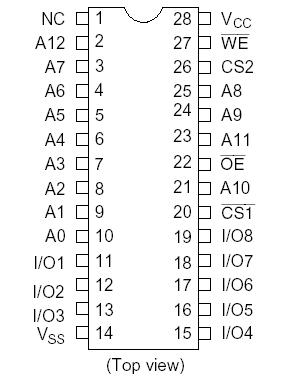

Connection Diagram

Specifications

Parameter                                          Symbol                                      Rating                           Unit
Terminal voltage ^* 1                              V_T                                     0.5 ^*2 to +7.0                   V
Power dissipation                                 P_T                                          1.0                                  W
Operating temperature                          T_opr                                      0 to +70                       °C
Storage temperature                             T_stg                                 55 to +125                       °C
Storage temperature (under bias)         T_bias                                 10 to +85                         °C
Notes: 1. With respect to VSS.
           2. 3.0 V for pulse width ² 50 ns
