HM62832H
-
Suppliers
DataSheet
General Description
HM62832H Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
| Voltage on any pin relative to VSS |
VT |
0.5 *1 to +7.0 |
V |
| Power dissipation |
PT |
1.0 |
W |
| Operating temperature |
Topr |
0 to +70 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
| Storage temperature under bias |
Tbias |
10 to +85 |
°C |
1. 2.5 V for pulse width 10 ns
HM62832H Features
` High speed: Fast access time 25/35/45 ns (max)
` Low power
Active: 300 mW (typ)
Standby: 10 W (typ) (L-version)
` Single 5 V supply
` Completely static memory
No clock or timing strobe required
` Equal access and cycle times
` Common data input and output Three state output
` Directly TTL compatible All inputs and outputs
` Low power
Active: 300 mW (typ)
Standby: 10 W (typ) (L-version)
` Single 5 V supply
` Completely static memory
No clock or timing strobe required
` Equal access and cycle times
` Common data input and output Three state output
` Directly TTL compatible All inputs and outputs

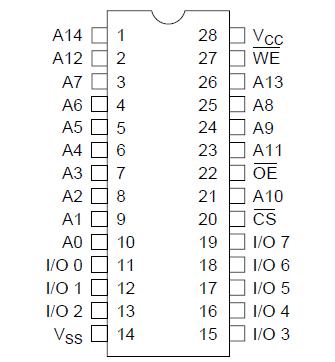

HM62832H Connection Diagram
