Purchase HM628512, In-stock HM628512 From SeekIC.
MFG:HITACHI D/C:08+
Part Number: HM628512
MFG: HITACHI
D/C: 08+
Description: The Hitachi HM628512 is a 4-Mbit static RAM organized 512-kword ×8-bit. It r...
- Table of contents:
HM628512
-
Suppliers
DataSheet
General Description
HM628512 General Description
The Hitachi HM628512 is a 4-Mbit static RAM organized 512-kword ×8-bit. It realizes igher density, higher performance and low power consumption by employing 0.5 mm Hi-CMOS process technology. The device, packaged in a 525-mil SOP (foot print pitch width) or 400-mil TSOP TYPE II or 600-mil plastic DIP, is available for high density mounting. LP-version is suitable for battery backup system.
HM628512 Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
| Voltage on any pin relative to VSS*1 |
VT |
0.5*2 to + 4.6 |
V |
| Power dissipation |
PT |
1.0 |
W |
| Operating temperature |
Topr |
0 to +70 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
| Storage temperature under bias |
Tbias |
10 to +85 |
°C |
1. Relative to VSS.
2. 3.0 V for pulse half-width 30 ns
HM628512 Features
` High speed: Fast access time:
- 55/65/70 ns (max)
` Low power
- Standby: 10 mW (typ) (L/L-SL version)
- Operation: 75 mW (typ) (f = 1 MHz)
` Single 5 V supply
` Completely static memory No clock or timing strobe required
` Equal access and cycle times
` Common data input and output: Three state output
` Directly TTL compatible: All inputs and outputs
` Capability of battery backup operation (L/L-SL version)
- 55/65/70 ns (max)
` Low power
- Standby: 10 mW (typ) (L/L-SL version)
- Operation: 75 mW (typ) (f = 1 MHz)
` Single 5 V supply
` Completely static memory No clock or timing strobe required
` Equal access and cycle times
` Common data input and output: Three state output
` Directly TTL compatible: All inputs and outputs
` Capability of battery backup operation (L/L-SL version)

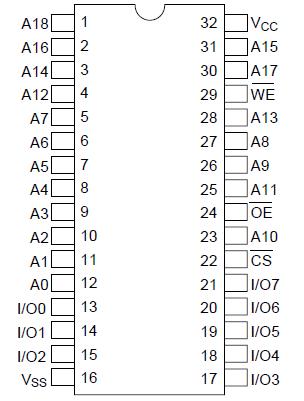

HM628512 Connection Diagram
HM628512 Series
PDF/DataSheet Download
- Datasheet: HM628512 Series
- File Size: 89834 KB
- Manufacturer: hitachi
- Click here to Download
