Part Number: HM628512BFP
Description: The Hitachi HM628512BFP is a 4-Mbit static RAM organized 512-kword×8-bit. It realizes higher density, ...
- Table of contents:
HM628512BFP
-
Suppliers
DataSheet
General Description
HM628512BFP General Description
The Hitachi HM628512BFP is a 4-Mbit static RAM organized 512-kword×8-bit. It realizes higher density, higher performance and low power consumption by employing Hi-CMOS process technology. It is packaged in standard 32-pin SOP.
HM628512BFP Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
| Power supply voltage relative to VSS |
VCC |
0.5 to +7.0 |
V |
| voltage on any pin relative to VSS |
VT |
0.5*1 to VCC + 0.3*2 |
V |
| Power dissipation |
PT |
1.0 |
W |
| Operating temperature |
Topr |
20 to +70 |
°C |
| Storage temperature range |
Tstg |
55 to +125 |
°C |
| Storage temperature range under bias |
Tbias |
20 to +85 |
°C |
1. 3.0 V for pulse half-width 30 ns
2. Maximum voltage is 7.0 V
HM628512BFP Features
· Single 5 V supply
· Access time: 55/70 ns (max)
· Power dissipation
- Active: 50 mW/MHz (typ)
- Standby: 2 mW (max)
· Completely static memory. No clock or timing strobe required
· Equal access and cycle times
· Common data input and output: Three state output
· Directly TTL compatible: All inputs and outputs
· Access time: 55/70 ns (max)
· Power dissipation
- Active: 50 mW/MHz (typ)
- Standby: 2 mW (max)
· Completely static memory. No clock or timing strobe required
· Equal access and cycle times
· Common data input and output: Three state output
· Directly TTL compatible: All inputs and outputs

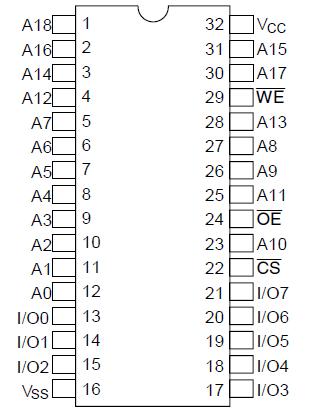

HM628512BFP Connection Diagram
HM628512BFP
