Part Number: HM62864
Description: The Hitachi HM62864 is a CMOS static RAM organized 64-kword × 8-bit. It real...
- Table of contents:
HM62864
-
Suppliers
DataSheet
General Description
HM62864 General Description
The Hitachi HM62864 is a CMOS static RAM organized 64-kword × 8-bit. It realizes higher density, higher performance and low power consumption by employing 0.8 mm Hi-CMOS process technology. It offers low power standby power dissipation; therefore, it is suitable for battery backup systems. The device, packaged in a 525-mil SOP (460-mil body SOP) and a 8 ´ 20 mm TSOP with thickness of 1.2 mm, is available for high density mounting. TSOP package is suitable for cards.
HM62864 Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
| Power supply voltage*1 |
VCC |
0.5 to +7.0 |
V |
| Terminal voltage *1 |
VT |
0.5 *2 to VCC + 0.3*3 |
V |
| Power dissipation |
PT |
1.0 |
W |
| Operating temperature |
Topr |
0 to +70 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
| Storage temperature under bias |
Tbias |
10 to +85 |
°C |
1. Relative to VSS
2. VT min: 3.0 V for pulse half-width 50 ns
3. Maximum voltage is 7.0V
HM62864 Features
` High speed
- Fast access time: 55/70/85 ns (max)
` Low power
- Active: 50 mW (typ) (f = 1 MHz)
- Standby: 2 W (typ)
` Single 5 V supply
` Completely static memory No clock or timing strobe required
` Equal access and cycle times
` Common data input and output Three state output
` Directly TTL compatible All inputs and outputs
` Capability of battery backup operation 2 chip selection for battery backup
- Fast access time: 55/70/85 ns (max)
` Low power
- Active: 50 mW (typ) (f = 1 MHz)
- Standby: 2 W (typ)
` Single 5 V supply
` Completely static memory No clock or timing strobe required
` Equal access and cycle times
` Common data input and output Three state output
` Directly TTL compatible All inputs and outputs
` Capability of battery backup operation 2 chip selection for battery backup

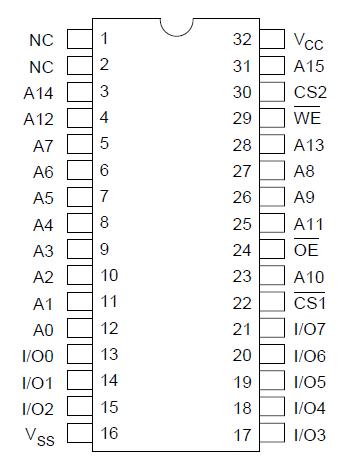

HM62864 Connection Diagram
HM62864 Series
PDF/DataSheet Download
- Datasheet: HM62864 Series
- File Size: 81051 KB
- Manufacturer: hitachi
- Click here to Download
