HM62V16514I

Features:

*  Single 3.0 V supply:  2.7 V to 3.6 V
*  Fast access time:  55 ns (Max)
*  Power dissipation:
                  Active:  6.0 mW/MHz (Typ)
                  Standby:  1.5 m W (Typ)
*  Completely static memory. No clock or timing strobe required
*  Equal access and cycle times
*  Common data input and output.  Three state output
*  Battery backup operation.
*  Temperature range:  40 to +85 C

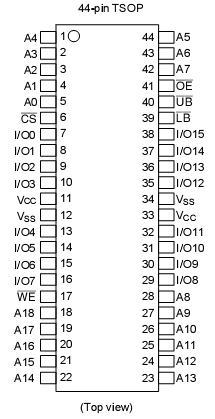

Pinout




Specifications

Parameter	Symbol	Value	Unit
Power supply voltage relative to VSS	VCC	0.5 to + 4.6	V
Terminal voltage on any pin relative to VSS	VT	0.5*1 to VCC + 0.3* 2	V
Power dissipation	PT	1.0	W
Storage temperature range	Tstg	55 to +125	C
Storage temperature range under bias	Tbias	40 to +85	C

Description

The Hitachi HM62V16514I Series is 8-Mbit static RAM organized 524,288-word ·  16-bit.  HM62V16514I Series has realized higher density, higher performance and low power consumption by employing Hi-CMOS process technology.  It offers low power standby power dissipation; therefore, it is suitable for battery backup systems.  It is packaged in standard 44-pin plastic TSOPII.
