HM62V8512CI

Features:

*  Single 3.0 V supply:  2.7 V to 3.6 V
*  Access time:  70 ns (max)
*  Power dissipation
                     Active:  6.0 mW/MHz (typ)
                     Standby:  2.4 W (typ)
*  Completely static memory. No clock or timing strobe required
*  Equal access and cycle times
*  Common data input and output:  Three state output
*  Directly LV-TTL compatible:  All inputs and outputs
*  Battery backup operation
*  Operating temperature:  40 to +85?C

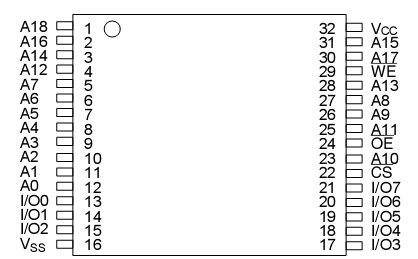

Pinout




Specifications

Parameter	Symbol	Value	Unit
Power supply voltage	VCC	0.5 to +4.6	V
Voltage on any pin relative to VSS	VT	1 2 0.5* to V CC+ 0.5*	V
Power dissipation	PT	1.0	W
Operating temperature	Topr	40 to +85	°C
Storage temperature	Tstg	55 to +125	°C
Storage temperature under bias	Tbias	40 to +85	°C

Description

The Hitachi HM62V8512CI is a 4-Mbit static RAM organized 512-kword ·  8-bit.  HM62V8512CI Series has realized higher density, higher performance and low power consumption by employing CMOS process technology (6-transistor memory cell).  The  Series offers low power standby powerdissipation; therefore, it is suitable for battery backup systems.  It is packaged in standard 32-pin TSOP II.
