Part Number: HM62W8512BI
Description: The Hitachi HM62W8512BI is a 4-Mbit static RAM organized 512-kword ×8-bit. H...
- Table of contents:
HM62W8512BI
-
Suppliers
DataSheet
General Description
HM62W8512BI General Description
The Hitachi HM62W8512BI is a 4-Mbit static RAM organized 512-kword ×8-bit. HM62W8512BI Series has realized higher density, higher performance and low power consumption by employing Hi-CMOS process echnology. The M62W8512BI Series offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It is packaged in standard 32-pin TSOP II.
HM62W8512BI Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
| Power supply voltage |
VCC |
0.5 to +4.6 |
V |
| Voltage on any pin relative to VSS |
VT |
0.5*1 to VCC + 0.5*2 |
V |
| Power dissipation |
PT |
1.0 |
W |
| Operating temperature |
Topr |
40 to +85 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
| Storage temperature under bias |
Tbias |
40 to +85 |
°C |
2. Maximum voltage is 4.6 V
HM62W8512BI Features
` Single 3.3 V supply: 3.3 V ± 0.3V
` Access time: 70/85 ns (max)
` Power dissipation
- Active: 16.5 mW/MHz (typ)
- Standby: 3.3 mW (typ)
` Completely static memory. No clock or timing strobe required
` Equal access and cycle times
` Common data input and output: Three state output
` Directly LV-TTL compatible: All inputs and outputs
` Battery backup operation
` Operating temperature: 40 to +85°C
` Access time: 70/85 ns (max)
` Power dissipation
- Active: 16.5 mW/MHz (typ)
- Standby: 3.3 mW (typ)
` Completely static memory. No clock or timing strobe required
` Equal access and cycle times
` Common data input and output: Three state output
` Directly LV-TTL compatible: All inputs and outputs
` Battery backup operation
` Operating temperature: 40 to +85°C

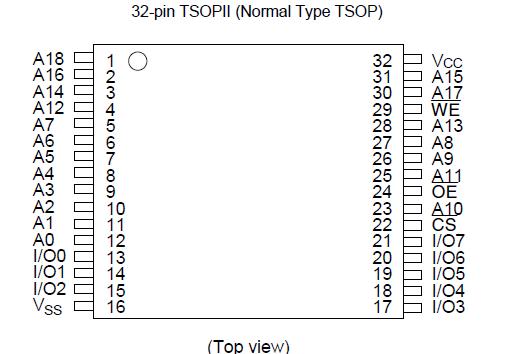

HM62W8512BI Connection Diagram
HM62W8512BI
PDF/DataSheet Download
- Datasheet: HM62W8512BI
- File Size: 66103 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
