HMC128G8

Features: Conversion Loss: 10 dBLO to RF and IF Isolation: >30 dBHigh Third-Order Intercept: +18 dBApplicationThe HMC128G8 is ideal for:• Base Station• MMDS• WirelessLAN• Wireless Local LoopPinoutSpecifications LO Drive +27 dBm ...

product image

HMC128G8 Picture
See larger image
SeekIC No. : 004363677 Detail

HMC128G8: Features: Conversion Loss: 10 dBLO to RF and IF Isolation: >30 dBHigh Third-Order Intercept: +18 dBApplicationThe HMC128G8 is ideal for:• Base Station• MMDS• WirelessLAN• ...

HMC128G8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC128G8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Conversion Loss: 10 dB
LO to RF and IF Isolation: >30 dB
High Third-Order Intercept: +18 dB


Application

The HMC128G8 is ideal for:
• Base Station
• MMDS
• WirelessLAN
• Wireless Local Loop

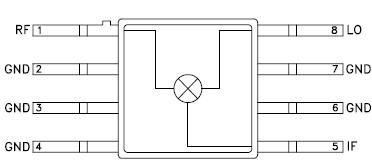

Pinout

Connection Diagram


Specifications

LO Drive +27 dBm
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC128G8 is a miniature double-balanced mixer in a hermetic surface mount package that can be used as an upconverter or downconverter. The HMC128G8 is a passive diode/balun type mixer with high dynamic range. Noise fi gure is essentially equal to the conversion loss. The mixer can handle larger signal levels than most active mixers due to the high third order intercept. MMIC implementation provides exceptional balance in the circuit resulting in high LO/RF and LO/IF isolations.
