Product Details

Description

Features:

Low Insertion Loss (2 GHz): 1.3dB
Single Positive Supply: Vdd = +5V
Integrated 3:8 TTL Decoder
24 Lead QSOP Package

Application

The HMC253QS24 is ideal for
DC - 2.5 GHz applications:
• CATV/DBS
• CDMA
• Cellular/PCS

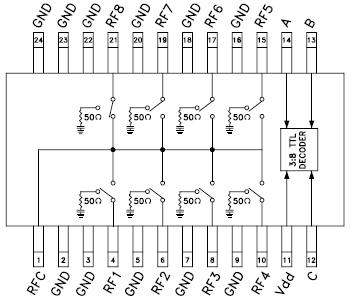

Pinout

Connection Diagram

Specifications

Bias Voltage Range (PortVdd)	-7.0 Vdc
Control Voltage Range (A, B,C)	-0.5V to Vdd +1Vdc
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C
Maximum Input Power Vdd = +5V	+20 dBm (0.05 - 0.5 GHz) +24 dBm (0.5 - 2.5 GHz)

Description

The HMC253QS24 is a low-cost non-refl ective SP8T switch in a 24-lead QSOP package featuring wideband operation from DC to 2.5 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:8 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC253QS24 SP8T will replace multiple confi gurations of SP4T and SPDT MMIC switches.
