HMC280MS8G

Features: Psat Output Power: +24 dBmOutput IP3: +38 dBmHigh Gain: 18 dBSingle Supply: +3.6VUltra Small Package: MSOP8GApplicationThe HMC280MS8G is ideal for:• UNII & HiperLAN• ISMPinoutSpecifications Drain Bias Voltage (Vdd1, Vdd2) +8.0 Vdc ...

product image

HMC280MS8G Picture
See larger image
SeekIC No. : 004363815 Detail

HMC280MS8G: Features: Psat Output Power: +24 dBmOutput IP3: +38 dBmHigh Gain: 18 dBSingle Supply: +3.6VUltra Small Package: MSOP8GApplicationThe HMC280MS8G is ideal for:• UNII & HiperLAN• ISMPin...

HMC280MS8G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC280MS8G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Psat Output Power: +24 dBm
Output IP3: +38 dBm
High Gain: 18 dB
Single Supply: +3.6V
Ultra Small Package: MSOP8G


Application

The HMC280MS8G is ideal for:
• UNII & HiperLAN
• ISM


Pinout

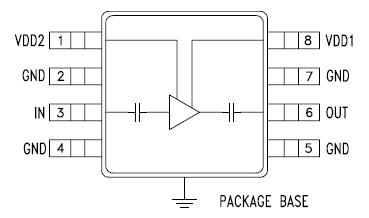

Connection Diagram


Specifications

Drain Bias Voltage (Vdd1, Vdd2) +8.0 Vdc
RF Input Power (RFin)(Vdd = +5.0 Vdc) +20 dBm
Channel Temperature 150 °C
Continuous Pdiss (T = 85 °C)
(derate 41 mW/°C above 85 °C)		 2.67 W
Thermal Resistance
(channel to lead)		 24.3 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -55 to +85 °C



Description

The HMC280MS8G is a +3.6V GaAs MMIC power amplifi er covering 5 to 6 GHz. The HMC280MS8G is packaged in a low cost, surface mount 8 lead MSOP plastic package with an exposed base paddle for improved RF ground and thermal dissipation. The amplifi er provides 18 dB of gain and 24 dBm Psat while operating from a single positive supply. External component requirements are minimal with the amplifi er occupying less than 0.023 sq. in. (14.6 sq. mm). All data is taken with the amplifi er assembled into a 50 ohm test fi xture with the exposed base paddle connected to RF ground. For transmit / receive applications use with either the HMC223MS8 or HMC224MS8 SPDT switches.
