HMC296MS8

Features:

IP3 (Input): +24 dBm @ +11 dBm LO
LO Range = +3 to +11 dBm
Conversion Loss: 7 dB
LO/RF Isolation: 40 dB


Application

The HMC296MS8 is ideal for:
• Miniature Basestations
• PCMCIA
• Portable Wireless
• WirelessLAN

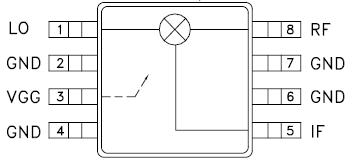

Pinout




Specifications

RF / IF Input	+20 dBm
LO Drive	+27 dBm
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C
Vgg	-10V

Description

The HMC296MS8 is a low LO drive, high IP3 double- balanced FET mixer in an 8 lead plastic surface mount MSOP package. This HMC296MS8 MMIC mixer is constructed of switched GaAs FETs and novel planar transformer baluns on the chip. The device can be used as an up or downconverter for 1.1 to 1.7 GHz applications. The consistent MMIC performance will improve system operation. The package dimensions are 0.118" x 0.192" (3.0mm x 4.9mm).
