HMC307QS16GE

Features: 1 dB LSB Steps to 31 dBSingle Control Line Per Bit+/- 0.5 dB Typical Bit ErrorMiniature QSOP-16 Package: 29.4 mm2ApplicationThe HMC307QS16G / HMC307QS16GE is ideal for:• Cellular• PCS, ISM, MMDS• Wireless Local LoopPinoutSpecificationsControl Voltage (V1 - V5) Vee - 0.5...

product image

HMC307QS16GE Picture
See larger image
SeekIC No. : 004363846 Detail

HMC307QS16GE: Features: 1 dB LSB Steps to 31 dBSingle Control Line Per Bit+/- 0.5 dB Typical Bit ErrorMiniature QSOP-16 Package: 29.4 mm2ApplicationThe HMC307QS16G / HMC307QS16GE is ideal for:• CellularR...

HMC307QS16GE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC307QS16GE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1 dB LSB Steps to 31 dB
Single Control Line Per Bit
+/- 0.5 dB Typical Bit Error
Miniature QSOP-16 Package: 29.4 mm2


Application

The HMC307QS16G / HMC307QS16GE is ideal for:
• Cellular
• PCS, ISM, MMDS
• Wireless Local Loop


Pinout

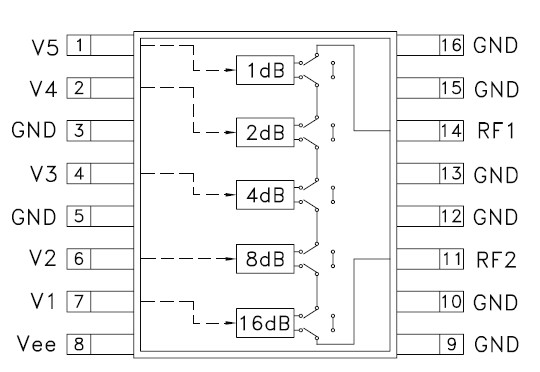

Connection Diagram


Specifications

Control Voltage (V1 - V5)           Vee - 0.5 Vdc
Bias Voltage (Vee)                             -7.0 Vdc
Storage Temperature            -65 to +150 °C
Operating Temperature           -40 to +85 °C
RF Input Power (0.5 - 4 GHz)            +26 dBm


Description

The HMC307QS16G & HMC307QS16GE are broadband 5-bit GaAs IC digital attenuators in 16 lead QSOP grounded base surface mount plastic packages. Covering DC to 4 GHz, the insertion loss is less then 2 dB typical. The attenuator bit values are 1 (LSB), 2, 4, 8, and 16 dB for a total attenuation of 31 dB. Attenuation accuracy is excellent at ± 0.5 dB typical with an IIP3 of up to +44 dBm. Five bit control voltage inputs, toggled between 0 and -5V, are used to select each attenuation state at less than 50 uA each. A single Vee bias of -5V allows operation down to DC. HMC307QS16G & HMC307QS16GE  are an excellent alternative to the HMC235QS16G.
