HMC308

Features: Gain: 18 dBP1dB Output Power: +17 dBm@ +5VSingle Supply: +3V or +5VNo External ComponentsIntegrated DC BlocksUltra Small Package: SOT26ApplicationBroadband or Narrow Band Applications:• Cellular/PCS/3G• Fixed Wireless & Telematics• Cable Modem Termination Systems...

product image

HMC308 Picture
See larger image
SeekIC No. : 004363847 Detail

HMC308: Features: Gain: 18 dBP1dB Output Power: +17 dBm@ +5VSingle Supply: +3V or +5VNo External ComponentsIntegrated DC BlocksUltra Small Package: SOT26ApplicationBroadband or Narrow Band Applications:R...

HMC308 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC308
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Gain: 18 dB
P1dB Output Power: +17 dBm@ +5V
Single Supply: +3V or +5V
No External Components
Integrated DC Blocks
Ultra Small Package: SOT26


Application

Broadband or Narrow Band Applications:
• Cellular/PCS/3G
• Fixed Wireless & Telematics
• Cable Modem Termination Systems
• WLAN, Bluetooth & RFID


Pinout

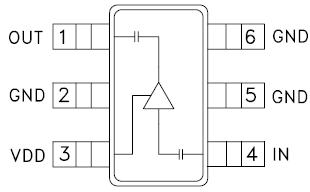

Connection Diagram


Specifications

Drain Bias Voltage (Vdd) +7.0 Vdc
RF Input Power (RFin)(Vdd = +5.0 Vdc) +10 dBm
Channel Temperature 150°C
Continuous Pdiss (T = 85 °C)
(derate 6.25 mW/°C above 85 °C)		 0.406 W
Thermal Resistance
(channel to die bottom)		 160 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC308 is a low cost MESFET MMIC amplifi er that operates from a single +3 to +5V supply from 0.8 to 3.8 GHz. The surface mount SOT26 amplifi er can be used as a broadband amplifi er stage or used with external matching for optimized narrow band applications. With Vdd biased at +5V, the HMC308 offers 18 dB of gain and +20 dBm of saturated output power while requiring only 53 mA of current. This amplifi er is ideal as a driver amplifi er for transmitters or for use as a local oscillator (LO) amplifi er to increase drive levels for passive mixers. The amplifi er occupies 0.014 in2 (9 mm2), making it ideal for compact radio designs.
