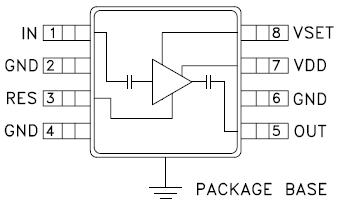

Features: Selectable Functionality:LNA, Driver, or LO Buffer AmpAdjustable Input IP3 Up to +10 dBm+3V OperationUltra Small 8 Lead MSOP:14.8 mm2 x 1mm HighApplicationThe HMC320MS8G is ideal for:• UNII• HiperLANPinoutSpecifications Drain Bias Voltage (Vdd) +...
HMC320MS8G: Features: Selectable Functionality:LNA, Driver, or LO Buffer AmpAdjustable Input IP3 Up to +10 dBm+3V OperationUltra Small 8 Lead MSOP:14.8 mm2 x 1mm HighApplicationThe HMC320MS8G is ideal for:̶...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
DescriptionThe HMC304MS8(E) is a passive high IP3 mixer in 8 lead plastic surface mount Mini Small...
Drain Bias Voltage (Vdd) | +7.0 Vdc |
Control Voltage Range (VSET) | 0 to Vdd |
RF Input Power (RFin)(Vdd = +3.0 Vdc) | +5 dBm |
Channel Temperature | 150 °C |
Continuous Pdiss (T = 85 °C) (derate 2.98 mW/°C above 85 °C) |
0.194 W |
Thermal Resistance (channel to ground paddle) |
336 °C/W |
Storage Temperature | -65 to +150 deg C |
Operating Temperature | -55 to +125 deg C |
The HMC320MS8G is a low cost C-band fi xed gain Low Noise Amplifi er (LNA). The HMC320MS8G operates using a single positive supply that can be set between +3V and +5V. With +3V bias, the LNA provides a noise fi gure of 2.5dB, 12dB gain and better than 10dB return loss across the UNII band. The HMC320MS8G also features adaptive baising that allows the user to select the optimal P1dB performance for their system using an external set resistor on the "RES" pin. P1dB performance can be set between a range of +1 dBm to +13dBm. The low cost LNA uses an 8-leaded MSOP ground base surface mount plastic package, which occupies less than 14.8mm2.
