HMC327MS8G

Features: Gain: 21 dBSaturated Power: +30 dBm45% PAESupply Voltage: +5.0 VPower Down CapabilityLow External Part CountApplicationThis amplifi er is ideal for use as a poweramplifi er for 3.3 - 3.6 GHz applications:• Wireless Local LoopPinoutSpecifications Collector B...

product image

HMC327MS8G Picture
See larger image
SeekIC No. : 004363873 Detail

HMC327MS8G: Features: Gain: 21 dBSaturated Power: +30 dBm45% PAESupply Voltage: +5.0 VPower Down CapabilityLow External Part CountApplicationThis amplifi er is ideal for use as a poweramplifi er for 3.3 - 3.6 G...

HMC327MS8G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC327MS8G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Gain: 21 dB
Saturated Power: +30 dBm
45% PAE
Supply Voltage: +5.0 V
Power Down Capability
Low External Part Count


Application

This amplifi er is ideal for use as a power
amplifi er for 3.3 - 3.6 GHz applications:
• Wireless Local Loop

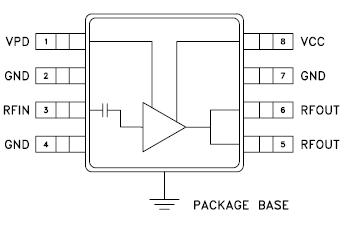

Pinout

Connection Diagram


Specifications

Collector Bias Voltage (Vcc) +5.5 Vdc
Control Voltage (Vpd) +5.5 Vdc
RF Input Power (RFin)(Vs = Vctl = +5.0 Vdc) +20 dBm
Junction Temperature 150 °C
Continuous Pdiss (T = 85 °C)
(derate 29 mW/°C above 85 °C)		 1.88 W
Thermal Resistance
(junction to ground paddle)		 34 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC327MS8G is a high effi ciency GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC Power amplifi er which operates between 3.0 and 4.0 GHz. The HMC327MS8G amplifi er is packaged in a low cost, surface mount 8 leaded package with an exposed base for improved RF and thermal performance. With a minimum of external components, the amplifi er provides 21 dB of gain, +30 dBm of saturated power at 45% PAE from a +5.0V supply voltage. Power down capability is available to conserve current consumption when the amplifi er is not in use.
