HMC340LP5

Features: Conversion Loss: 8.0 dBLO/RF Isolation: 45 dBLO/IF Isolation: 33 dBInput IP3: +20 dBmConversion Gain Balance: 0.1 dB5 x 5 x 1 mm QFN SMT PackageApplicationThe HMC340LP5 Dual Mixer is ideal for:• Wireless Infrastructure• Wireless Local Loop• Image Reject Mixer• I/Q...

product image

HMC340LP5 Picture
See larger image
SeekIC No. : 004363888 Detail

HMC340LP5: Features: Conversion Loss: 8.0 dBLO/RF Isolation: 45 dBLO/IF Isolation: 33 dBInput IP3: +20 dBmConversion Gain Balance: 0.1 dB5 x 5 x 1 mm QFN SMT PackageApplicationThe HMC340LP5 Dual Mixer is ideal...

HMC340LP5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC340LP5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Conversion Loss: 8.0 dB
LO/RF Isolation: 45 dB
LO/IF Isolation: 33 dB
Input IP3: +20 dBm
Conversion Gain Balance: 0.1 dB
5 x 5 x 1 mm QFN SMT Package


Application

The HMC340LP5 Dual Mixer is ideal for:
• Wireless Infrastructure
• Wireless Local Loop
• Image Reject Mixer
• I/Q Modulator
• SSB Modulator


Pinout

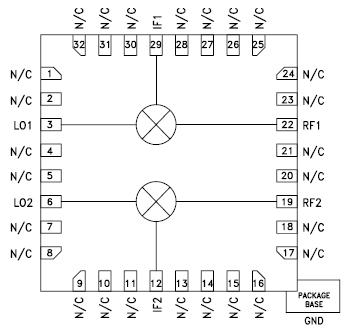

Connection Diagram


Specifications

RF / IF Input

+13 dBm
LO Drive +27 dBm
Channel Temperature 150
Continuous Pdiss (T = 85°C)
(derate 16.55 mW/°C above 85°C)		 1.07 W
Thermal Resistance (RTH)
(junction to package base)		 60.4 /W
Storage Temperature -65 to +150
Operating Temperature -40 to +85



Description

The HMC340LP5 is a double-balanced dual mixer covering 1.7 - 4.5 GHz RF/LO range. This passive MMIC mixer is constructed of GaAs Schottky diodes and on-chip baluns. The device can be used as an upconverter, downconverter, biphase (de)modulator, or phase comparator. The mixer symmetry of the HMC340LP5 makes it an ideal candidate for single sideband or image rejection applications. The consistent MMIC performance will improve system operation and assure regulatory compliance. A low cost, leadless 5x5 mm QFN surface mount package (LP5) houses the dual MMIC mixer IC.
