Product Details

Description



Features:

Isolation: 50 dB @ 2.5 GHz
               36 dB @ 8.0 GHz
Insertion Loss: 2.0 dB Typical
Non-Refl ective Design
Surface Mount Ceramic Package


Application

The HMC347C8 is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military Radios, Radar & ECM
• Test Instrumentation


Pinout

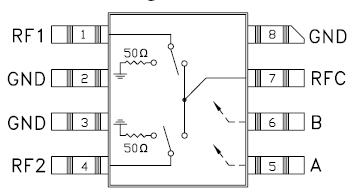

Connection Diagram


Specifications

RF Input Power (Vctl = -5V) +27 dBm
Control Voltage Range (A & B) +0.5V to -7.5 Vdc
Channel Temperature 150°C
Thermal Resistance
(Insertion Loss Path)		 440 °C/W
Thermal Resistance
(Terminated Path)		 540 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -55 to +85 °C



Description

The HMC347C8 is a broadband high isolation non-refl ective GaAs MESFET SPDT switch in a non-hermetic surface mount ceramic package. Covering DC to 8.0 GHz, the HMC347C8 switch features >50 dB isolation up to 2 GHz and >35 dB isolation up to 8.0 GHz. The switch operates using complementary negative control voltage logic lines of -5/ 0V and requires no bias supply. This SPDT is an excellent replacement for the HMC132C8 SPDT.
