HMC349LP4C

Features: ·High Isolation: 67 dB @ 1 GHz 62 dB @ 2 GHz·Single Positive Control: 0/+5V·+52 dBm Input IP3·Non-Refl ective Design·All Off State·16 mm2 Leadless QFN SMT PackageApplicationThe HMC349LP4C is ideal for:• Basestation Infrastructure• MMDS & 3.5 GHz WLL• CATV/CMTS•...

product image

HMC349LP4C Picture
SeekIC No. : 004363913 Detail

HMC349LP4C: Features: ·High Isolation: 67 dB @ 1 GHz 62 dB @ 2 GHz·Single Positive Control: 0/+5V·+52 dBm Input IP3·Non-Refl ective Design·All Off State·16 mm2 Leadless QFN SMT PackageApplicationThe HMC349LP4C ...

floor Price/Ceiling Price

Part Number:
HMC349LP4C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·High Isolation: 67 dB @ 1 GHz
                           62 dB @ 2 GHz
·Single Positive Control: 0/+5V
·+52 dBm Input IP3
·Non-Refl ective Design
·All Off State
·16 mm2 Leadless QFN SMT Package



Application

The HMC349LP4C is ideal for:
• Basestation Infrastructure
• MMDS & 3.5 GHz WLL
• CATV/CMTS
• Test Instrumentation



Pinout

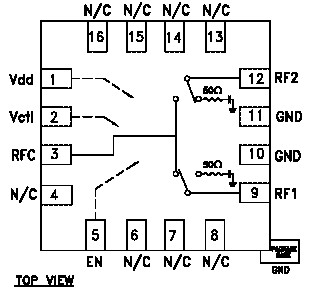

  Connection Diagram


Specifications

RF Input Power (Vctl = 0V/+5V)
(0.25 - 4 GHz)
+30 dBm (T = +85 )
Supply Voltage Range (Vdd) +7 Vdc
Control Voltage Range (Vctl) -1V to Vdd +1V
Hot Switch Power Level
(Vdd = +5V)
+30 dBm
Channel Temperature 150
Continuous Pdiss (T = 85 )
(derate 12 mW/ above 85 )
0.75 W
Thermal Resistance 87 /W
Storage Temperature -65 to +150
Operating Temperature -40 to +85



Description

The HMC349LP4C is a high isolation nonrefl ective DC to 4 GHz GaAs MESFET SPDT switch in a low cost leadless surface mount package. The HMC349LP4C switch is ideal for cellular/PCS/3G basestation applications yielding 60 to 65 dB isolation, low 0.9 dB insertion loss and +52 dBm input IP3. Power handling is excellent up through the 3.5 GHz WLL band with the switch offering a P1dB compression point of +31 dBm. On-chip circuitry allows a single positive voltage control of 0/+5 Volts at very low DC currents. An enable input (EN) set to logic high will put the switch in an "all off" state.
