Product Details

Description



Features:

Conversion Loss: 8.0 dB
Input IP3: +27 dBm
Input IP2: +45 dBm
Input P1dB: +17 dBm


Application

The HMC350MS8 is ideal for:
• Cellular Basestations
• Cable Modems
• Fixed Wireless Access Systems

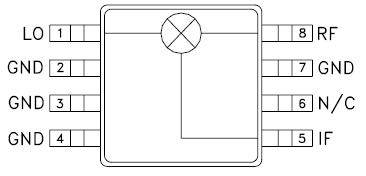

Pinout

Connection Diagram


Specifications

RF / IF Input +22 dBm
LO Drive +27 dBm
Storage Temperature -65 to +150
Operating Temperature -40 to +85
IF DC Current ±18 mA



Description

The HMC350MS8 is a miniature single balanced mixer in an 8 lead plastic surface mount package. The passive GaAs schottky diode mixer implements planar on chip baluns and requires no external components. The mixer can be used as an upconverter, down converter, or modulator. The HMC350MS8 mixer provides 7.5 dB conversion loss and +25 dBm IIP3 with LO drive levels of +19 dBm at mid-band. The design was optimized for low cost high volume applications where high converter linearity is required.
