Product Details

Description

Features:

·Ultra Low SSB Phase Noise: -148 dBc/Hz
·Wide Bandwidth
·Output Power: 3 dBm
·Single DC Supply: +5V
·Small Size: 0.686 mm x 1.143 mm

Application

Prescaler for DC to X Band PLL Applications:
• Satellite Communication Systems
• Fiber Optic
• Pt-Pt and Pt-MPt Radios
• VSAT

Pinout

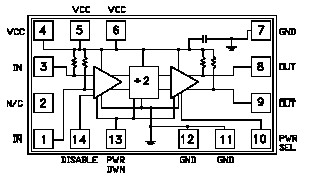

Connection Diagram

Specifications

RF Input (Vdd = +3V)	+13 dBm
Vcc	+5.5V
VLogic	Vcc -1.6V to Vcc -1.2V
Storage Temperature	-65 to +150
Operating Temperature	-55 to +85

Description

The HMC361 is a low noise Divide-by-2 Static Divider with InGaP GaAs HBT technology that has a small size of 1.14 x 0.69 mm. This HMC361 operates from DC (with a square wave input) to 11 GHz input frequency with a single +5V DC supply. The low additive SSB phase noise of -148 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.
