HMC368LP4

Features:

Output Power: +15 dBm
Wide Input Power Range: 0 to +10 dBm
100 kHz SSB Phase Noise: -140 dBc/Hz
+5V @ 75 mA Supply
16 mm2 Leadless QFN SMT Package


Application

• Microwave Radios & VSAT
• Fiber Optic Infrastructure
• Military Communications & Radar

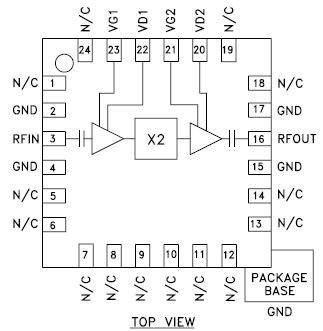

Pinout




Specifications

RF Input (Vcc= +5V)	+20 bBm
Supply Voltage, Vd1, Vd2	+6.0V
Gate Bias Voltage (Vg1, Vg2)	-4 to Vdc
Channel Temperature	150
Continuous Pdiss (T = 85 °C) (derate 12.5 mW/°C above 85 °C)	812mW
Thermal Resistance (junction to ground paddle)	80/w
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C

Description

The HMC368LP4 is a miniature amp-doubler-amp utilizing GaAs PHEMT technology in a 4 mm x 4 mm leadless surface mount package. When driven by a +2 dBm signal, the multiplier provides +15 dBm typical output power from 9 to 16 GHz. The Fo and the 3Fo isolations are 18 dB typical. The low additive SSB phase noise of -140 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance. The HMC368LP4 is ideal for use in LO multiplier chains allowing reduced parts count vs. traditional approaches.
