HMC380QS16G

Features:

·+19 dBm Input IP3
·Low LO Drive: -5 dBm
·Conversion Gain: 11 dB
·Noise Figure: 9 dB
·Single Positive Supply: +5V, 120 mA


Application

The HMC380QS16G is ideal for:
• GSM, GPRS & EDGE Infrastructure
• CDMA, WCDMA Infrastructure
• PHS Infrastructure

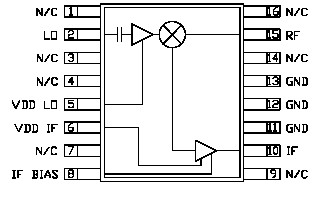

Pinout




Specifications

RF / IF Input (Vdd= +5V)	+13 dBm
LO Drive (Vdd= +5V)	+15 dBm
Vdd (LO or IF)	+7 Vdc
Channel Temperature	150
Continuous Pdiss (T = 85) (derate 13.0 mW/°C above 85)	0.854 W
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85 deg



Description

The HMC380QS16G is a high linearity down-converter receiver IC suitable for PCS/UMTS infrastructure applications from 1.7 - 2.2 GHz. The receiver IC is designed to support UMTS applications where a high third order intercept point is required. A passive mixer coupled with a high dynamic range IF amplifi er achieves an input IP3 of +19 dBm. The converter provides a gain of 11 dB and 9 dB typical single side band noise fi gure. The HMC380QS16G IC operates from a positive +5V rail consuming 120 mA of current while only requiring a -5 dBm LO drive. The design requires no external baluns. The mixer supports IF frequencies between 50 MHz and 300 MHz.
