Product Details

Description

Features:

·Single Positive Voltage Control: 0 to +3V
·High Attenuation Range: 48 dB @ 0.9 GHz
·High P1dB Compression Point: +15 dBm
·Ultra Small Package: MSOP8
·Replaces HMC173MS8

Application

•The HMC473MS8 is ideal for:
Cellular, UMTS/3G Infrastructure
Portable Wireless
GPS

Pinout

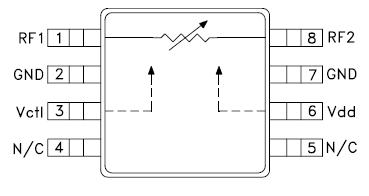

Connection Diagram

Specifications

VCTL	-0.2 Vdc to Vdd
Vdd	+8 Vdc
Maximum Input Power Vdd = +3.3 Vdc	+29 dBm +21 dBm Min. Atten. Attenuation >2 dB
Channel Temperature (T_c)	150 °C
Thermal Resistance (R_TH) (junction to lead)	92 °C/W
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C

Description

The HMC473MS8 is an absorptive voltage variable attenuator in an 8-lead MSOP package. The device operates with a +3.3V supply voltage and a 0 to +3V control voltage. Unique features include a high dynamic attenuation range of up to 48 dB and excellent power handling performance through all attenuation states. The HMC473MS8 is ideal for operation in wireless applications from 0.45 to 1.6 GHz. Operation from 1.7 to 2.2 GHz is possible with a reduced maximum attenuation of 29 to 32 dB. It can be used with an external driver circuit for improved control voltage linearity vs. attenuation.
