HMS81004E

Features: • Instruction Cycle Time:- 1us at 4MHz• Operating Voltage- 2.0 ~ 3.6 V @ 4MHz (MASK)- 2.0 ~ 4.0 V @ 4MHZ (OTP)• Timer- Timer / Counter ......... 16Bit * 1ch......... 8Bit * 2ch- Basic Interval Timer ...... 8Bit * 1ch- Watch Dog Timer ............ 6Bit * 1ch• 8 Int...

product image

HMS81004E Picture
See larger image
SeekIC No. : 004364866 Detail

HMS81004E: Features: • Instruction Cycle Time:- 1us at 4MHz• Operating Voltage- 2.0 ~ 3.6 V @ 4MHz (MASK)- 2.0 ~ 4.0 V @ 4MHZ (OTP)• Timer- Timer / Counter ......... 16Bit * 1ch......... 8Bit...

HMS81004E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMS81004E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Instruction Cycle Time:
- 1us at 4MHz
• Operating Voltage
- 2.0 ~ 3.6 V @ 4MHz (MASK)
- 2.0 ~ 4.0 V @ 4MHZ (OTP)
• Timer
- Timer / Counter ......... 16Bit * 1ch
......... 8Bit * 2ch
- Basic Interval Timer ...... 8Bit * 1ch
- Watch Dog Timer ............ 6Bit * 1ch
• 8 Interrupt sources
- Nested Interrupt control is available.
- External input: 2
- Keyscan input
- Basic Interval Timer
- Watchdog timer
- Timer : 3
• Power On Reset
• Power saving Operation Modes
- STOP Operation
- SLEEP Operation
• Low Voltage Detection Circuit
• Watch Dog Timer Auto Start (During 1second after Power on Reset)

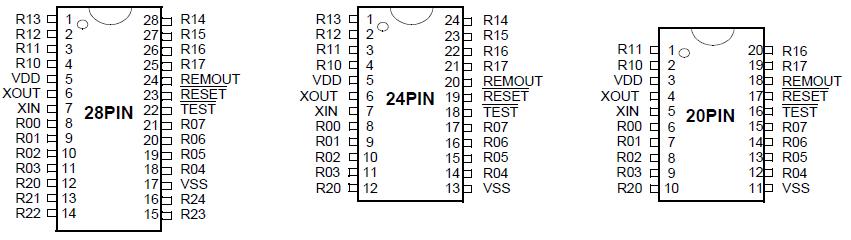

Pinout

Connection Diagram


Specifications

Supply voltage ........................................ -0.3 to +5.0 V
Input Voltage .....................................-0.3 to VDD+0.3 V
Output Voltage ..................................-0.3 to VDD+0.3 V
Operating Temperature........................................0~70
Storage Temperature ................................... -65~150
Power Dissipation...............................................700 mA


Description

The HMS81004E/08E/16E/24E/32E is an advanced CMOS 8-bit microcontroller with 4/8/16/24/32K bytes of ROM. The device is one of GMS800 family.It is a powerful microcontroller which provides a highly flexible and cost effective solution to many UR applications.The HMS81004E/08E/16E/24E/32E provides the following standard features: 4/8/16/24/32K bytes of ROM, 448 bytes of RAM, 8-bit timer/counter, on-chip oscillator and clock circuitry. In addition, it supports power saving modes to reduce power consumption.
