Part Number: HN62435
Description: The HN62435 is a 4-Mbit CMOS mask-Programmable ROM organized either as 262144 words by 16 bits or 5242...
- Table of contents:
HN62435
-
Suppliers
DataSheet
General Description
HN62435 General Description
The HN62435 is a 4-Mbit CMOS mask-Programmable ROM organized either as 262144 words by 16 bits or 524288 words by 8 bits. Realizing a access speed of 120/150 ns (max) depend upon technology of a high speed circuit.
HN62435 Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
| Supply voltage*1 |
VCC |
0.3 to +7.0 |
V |
| All input and output voltage*1 |
Vin, Vout |
0.3 to VCC + 0.3 |
V |
| Operating temperature |
Topr |
0 to +70 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
| Temperature under bias |
Tbias |
20 to +85 |
°C |
HN62435 Features
` Single 5 V supply
` High speed
Access time: 120/150 ns (max)
` Low power
Active: 275 mW (max)
Standby: 165 W (max)
` Byte-wide or word-wide data organization (Switched by BHE terminal)
` Three-state data output for or-tying
` Directly TTL compatible
All inputs and outputs
` Pin compatible with 4 Mbit EPROM (HN27C4000G/FP)
` High speed
Access time: 120/150 ns (max)
` Low power
Active: 275 mW (max)
Standby: 165 W (max)
` Byte-wide or word-wide data organization (Switched by BHE terminal)
` Three-state data output for or-tying
` Directly TTL compatible
All inputs and outputs
` Pin compatible with 4 Mbit EPROM (HN27C4000G/FP)

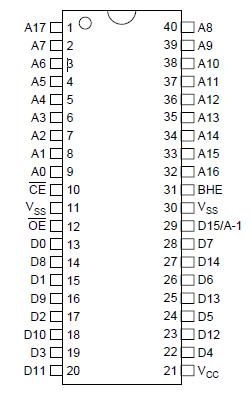

HN62435 Connection Diagram
