Part Number: HN62448
Description: The Hitachi HN62448 is a 8-Mbit CMOS mask-programmable ROM organized either as 524288-words by 16-bits...
- Table of contents:
HN62448
-
Suppliers
DataSheet
General Description
HN62448 General Description
The Hitachi HN62448 is a 8-Mbit CMOS mask-programmable ROM organized either as 524288-words by 16-bits or as 1048576-words by 8-bits. And a high speed access of 100/120 ns is the most suitable to the system using a high speed microcomputer by 16 bits.
HN62448 Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
Note |
| Supply voltage |
VCC |
0.3 to +7.0 |
V |
1 |
| All input and output voltage |
Vin, Vout |
0.3 to VCC + 0.3 |
V |
1 |
| Operating temperature |
Topr |
0 to +70 |
°C |
|
| Storage temperature |
Tstg |
55 to +125 |
°C |
|
| Temperature under bias |
Tbias |
20 to +85 |
°C |
HN62448 Features
` Single 5 V power supply
` Access time:
- Normal access time: 100/120 ns (max)
` Low power dissipation
- Active: 300 mW (typ)
- Standby: 5 W (typ)
` Byte-wide or word-wide data organization with BHE
` Three-state data output for wired or-tying
` Directly TTL compatible (All input and output)
` Access time:
- Normal access time: 100/120 ns (max)
` Low power dissipation
- Active: 300 mW (typ)
- Standby: 5 W (typ)
` Byte-wide or word-wide data organization with BHE
` Three-state data output for wired or-tying
` Directly TTL compatible (All input and output)

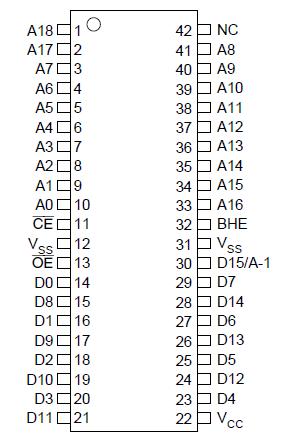

HN62448 Connection Diagram
