HN62W4416N

Features: ` Low voltage operation Mask ROM Single 3.3 V supply` High speed Normal access time: 150 ns (max) Page access time: 50 ns (max)` Low power Active: 252 mW (max) Standby: 108 W (max)` Byte-wide or word-wide data organization (Switched by BHE terminal)` 4 word page access on word-wide mode`...

product image

HN62W4416N Picture
See larger image
SeekIC No. : 004365114 Detail

HN62W4416N: Features: ` Low voltage operation Mask ROM Single 3.3 V supply` High speed Normal access time: 150 ns (max) Page access time: 50 ns (max)` Low power Active: 252 mW (max) Standby: 108 W (max)` Byte-w...

HN62W4416N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN62W4416N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Low voltage operation Mask ROM
     Single 3.3 V supply
`  High speed
     Normal access time: 150 ns (max)
     Page access time: 50 ns (max)
`  Low power
     Active: 252 mW (max)
     Standby: 108 W (max)
`  Byte-wide or word-wide data organization (Switched by BHE terminal)
`  4 word page access on word-wide mode
`  8 byte page access on byte-wide mode
`  Three-state data output for or-tying
`  Directly LVTTL compatible
     All inputs and outputs

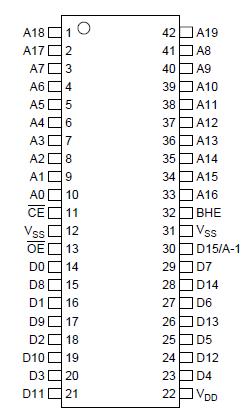

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage
VDD
0.3 to +5.5
V
All input and output voltage*1
Vin, Vout
0.3 to VDD + 0.3
V
Operating temperatue range*1
Topr
0 to +70
°C
Storage temperature range
Tstg
55 to +125
°C
Temperature under bias
Tbias
20 to + 85
°C
Notes:
1. With respect to VSS.


Description

The HN62W4416N is a 16-Mbit CMOS mask-Programmable ROM organized either as 1048576 words by 16 bits or 2097152 words by 8 bits. Realizing low power consumption, this memory is allowed for battery operation. And a high speed access of 150 ns (max) is the most suitable to the system using a high speed micro-computer by 16 bits.
