General Description
HPW7095 General Description
The HPW7095/A is a 6-channel, frequency-settable, voltage-mode, DC/DC control IC providing a complete power supply solution for high-performance portable digital cameras. The HPW7095/A uses pulse-widthmodulation (PWM) and synchronous rectification for high efficiency step-up, step-down, up-down and inverting converters with free input and output settings in 2 or 4-cell AA, 1-cell lithium-ion (Li+), and dualbattery designs. The HPW7095/A incorporates error amplifiers, output short-circuit detection, under-voltage lockout, soft-start and output switch control into a chip. The HP7095/A improves performance, component count, and size compared to conventional multichannel controllers.
The APW7095/A has a power-good indicator (PGOOD) that signals when CH1 output is within ±10% of the set voltage by monitoring IN1 pin.
The HPW7095/A is available in compact 48-pin plastic LQFP and TQFN packages.
HPW7095 Maximum Ratings
|
Symbol |
Parameter |
Rating |
Unit |
|
VCC |
VCC Supply Voltage (VCC to GND) |
-0.3 ~ 7 |
V |
|
VPVCC |
PVCC Supply Voltage (PVCC to GND) |
-0.3 ~ 7 |
V |
| IN1~6, INA4, INS4, DTC1~5 Input Voltages |
-0.3 ~ VCC+0.3 |
V | |
| CTL, CTL1~5, SWIN Input Voltages |
-0.3 ~ 7 |
V | |
| PGOOD Pull High Voltage |
-0.3 ~ 7 |
V | |
| Maximum Junction Temperature |
150 |
||
|
TSTG |
Storage Temperature |
-65 ~ 150 |
|
|
TSDR |
Maximum Soldering Temperature, 10 Seconds |
300 |
HPW7095 Features
• Supports for synchronous rectification (CH1, CH2 and CH5)
• Supports for down or up-down Zeta conversions (CH1 and HPW7095 CH2)
• Supports for up, flyback or up-down SEPIC conversions HPW7095A CH2, CH3, APW7095 CH4, CH5 and CH6)
• Supports for Inverting conversion (HPW7095A CH4)
• Low Start-up Voltage : 1.4V (CH6)
• Power Supply Voltage Range
- CH1 to CH5 : 3.0V to 6.5V
- CH6 : 2.4V to 6.5V
• 1% Reference Voltage Accuracy
• Wide Operating Frequency 100kHz to 1MHz
• Soft-Start Function (CH1 to 6)
• Power Good (PGOOD) Indicator for CH1
• Low Shutdown Current
• Output Short-Circuit Detections
• Supports for down or up-down Zeta conversions (CH1 and HPW7095 CH2)
• Supports for up, flyback or up-down SEPIC conversions HPW7095A CH2, CH3, APW7095 CH4, CH5 and CH6)
• Supports for Inverting conversion (HPW7095A CH4)
• Low Start-up Voltage : 1.4V (CH6)
• Power Supply Voltage Range
- CH1 to CH5 : 3.0V to 6.5V
- CH6 : 2.4V to 6.5V
• 1% Reference Voltage Accuracy
• Wide Operating Frequency 100kHz to 1MHz
• Soft-Start Function (CH1 to 6)
• Power Good (PGOOD) Indicator for CH1
• Low Shutdown Current
• Output Short-Circuit Detections
HPW7095 Typical Application
• Digital Camera
• Camcorder
• Hand-held Instrument
• Camcorder
• Hand-held Instrument

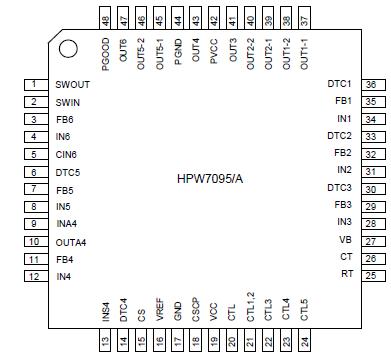

HPW7095 Connection Diagram
HPW7095
