Part Number: HS-5104ARH-T









Description: Intersil's Satellite Applications FlowTM (SAF) devices are fully tested and ...


Urgent Purchase

HS-5104ARH-T General Description


Intersil's Satellite Applications Flow TM (SAF) devices are fully tested and guaranteed to 100kRAD total dose. These QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability.
The HS-5104ARH-T is a radiation hardened, monolithic quad operational amplifier that provides highly reliable
performance in harsh radiation environments. Its excellent noisecharacteristicscoupledwithauniquearrayofdynamic
specifications make this amplifier well-suited for a variety of satellite system applications. Dielectrically isolated, bipolar processing makes this device immune to Single Event Latch-up.
The HS-5104ARH-T shows almost no change in offset voltage after exposure to 100K RAD(Si) gamma radiation,
with only a minor increase in current. Complementing these specifications is a post radiation open loop gain in excess of 40K.
This quad operational amplifier is available in an industry standard pinout, allowing for immediate interchangeability
with most other quad operational amplifiers.

HS-5104ARH-T Features

* QML Class T, Per MIL-PRF-38535
* Radiation Performance
- Gamma Dose () 1 x 10  RAD(Si)
- No Latch-Up, Dielectrically Isolated Device Islands
* Low Noise
- At 1kHz  . . . . . . . . . . . . . . . . . . . . . . . .4.3nV/Hz (Typ)
- At 1kHz  . . . . . . . . . . . . . . . . . . . . . . . .0.6pA/Hz (Typ)
* Low Offset Voltage. . . . . . . . . . . . . . . . . . . . 3.0mV (Max)
* High Slew Rate  . . . . . . . . . . . . . . . . . . . . . . 2.0V/ s (Typ)
* Gain Bandwidth Product  . . . . . . . . . . . . . . . 8.0MHz (Typ)

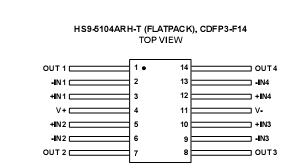

HS-5104ARH-T Connection Diagram

HS-5104ARH-T Connection Diagram
