Part Number: HS-565BRH
Description: The HS-565BRH is a fast, radiation hardened 12-bit current output, digital-to-analog converter. This p...
- Table of contents:
HS-565BRH
-
Suppliers
DataSheet
General Description
HS-565BRH General Description
The HS-565BRH is a fast, radiation hardened 12-bit current output, digital-to-analog converter. This part replaces the HS-565ARH, which is no longer available. The monolithic chip includes a precision voltage reference, thin-film R-2R ladder, reference control amplifier and twelve high-speed bipolar current switches.
The Intersil Corporation Dielectric Isolation process provides latch-up free operation while minimizing stray capacitance and leakage currents, to produce an excellent combination of speed and accuracy. Also, ground currents are minimized to produce a low and constant current through the ground terminal, which reduces error due to code-dependent ground currents.
HS-565BRH die are laser trimmed for a maximum integral nonlinearity error of ±0.25 LSB at 25oC. In addition, the low noise buried zener reference is trimmed both for absolute value and minimum temperature coefficient.
HS-565BRH Features
• Electrically Screened to SMD # 5962-96755
• QML Qualified per MIL-PRF-38535 Requirements
• Total Dose . . . . . . . . . . . . . . . . . . . . . 100 krad (Si) (Max)
• DAC and Reference on a Single Chip
• Pin Compatible with AD-565A and HI-565A
• Very High Speed: Settles to 0.50 LSB in 500ns Max
• Monotonicity Guaranteed Over Temperature
• 0.50 LSB Max Nonlinearity Guaranteed Over Temperature
• Low Gain Drift (Max., DAC Plus Reference) . . . . . . . . . . . . . . .50ppm/oC
• ±0.75 LSB Accuracy Guaranteed Over Temperature (±0.125 LSB Typical at 25oC)
• QML Qualified per MIL-PRF-38535 Requirements
• Total Dose . . . . . . . . . . . . . . . . . . . . . 100 krad (Si) (Max)
• DAC and Reference on a Single Chip
• Pin Compatible with AD-565A and HI-565A
• Very High Speed: Settles to 0.50 LSB in 500ns Max
• Monotonicity Guaranteed Over Temperature
• 0.50 LSB Max Nonlinearity Guaranteed Over Temperature
• Low Gain Drift (Max., DAC Plus Reference) . . . . . . . . . . . . . . .50ppm/oC
• ±0.75 LSB Accuracy Guaranteed Over Temperature (±0.125 LSB Typical at 25oC)
HS-565BRH Typical Application
• High Speed A/D Converters
• Precision Instrumentation
• Signal Reconstruction
• Precision Instrumentation
• Signal Reconstruction

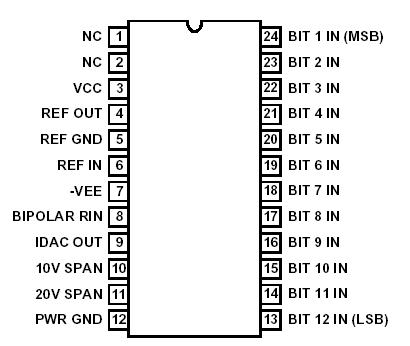

HS-565BRH Connection Diagram
HS-565BRH
