HSM276AS

Features: · High forward current, Low capacitance.· HSM276AS which is interconnected in series configuration is designed for balanced mixer use.· MPAK package is suitable for high density surface mounting and high speed assembly.PinoutSpecifications Item Symbol Value Unit Repeti...

product image

HSM276AS Picture
SeekIC No. : 004366154 Detail

HSM276AS: Features: · High forward current, Low capacitance.· HSM276AS which is interconnected in series configuration is designed for balanced mixer use.· MPAK package is suitable for high density surface mo...

floor Price/Ceiling Price

Part Number:
HSM276AS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  High forward current, Low capacitance.
·  HSM276AS which is interconnected in series configuration is designed for balanced mixer use.
·  MPAK package is suitable for high density surface mounting and high speed assembly.

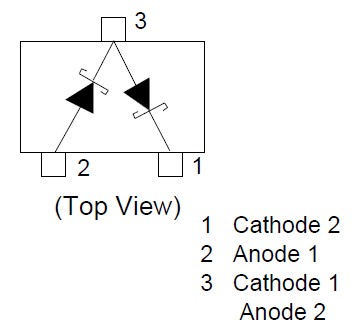

Pinout

  Connection Diagram


Specifications

Item
Symbol
Value
Unit
Repetitive peak reverse
voltage
VRRM
5
V
Reverse voltage
VR
3
V
Average rectified current
IO*
30
mA
Junction temperature
Tj
125
Storage temperature
Tstg
45 to +125
Note: Per one device
