Position: Home > Datasheet list > HSM Series > Index H > HSMS-2813-TR2G
Electronica China

Purchase HSMS-2813-TR2G, In-stock HSMS-2813-TR2G From SeekIC.

MFG:Avago Technologies US Inc.  Category:Diodes, Rectifiers

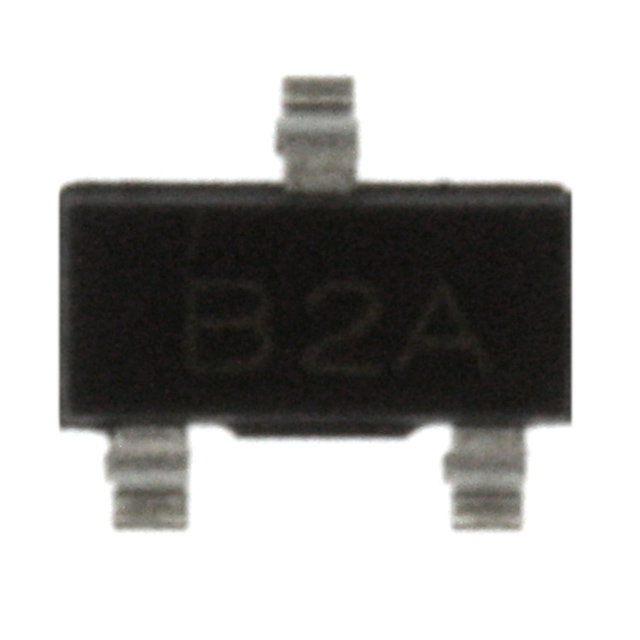

HSMS-2813-TR2G Product Image

HSM Series Datasheet download

Five Points

Part Number: HSMS-2813-TR2G

Category: Diodes, Rectifiers

MFG: Avago Technologies US Inc.





Descriptions: DIODE SCHOTTKY GP LN 20V SOT-23

Price Break

10000

Unit Price

.59500

Extended Price

5950.00

(All prices are in USD) Prices for reference only
Urgent Purchase

HSMS-2813-TR2G General Description

DIODE SCHOTTKY GP LN 20V SOT-23

HSMS-2813-TR2G Parameters

Technical/Catalog InformationHSMS-2813-TR2G
VendorAvago Technologies US Inc.
CategoryDiodes, Rectifiers
Mounting TypeSurface (SMD, SMT)
Package NameSOT-23
Diode TypeSchottky
Structure1 Pair Common Anode
Number of Diodes2 [Nom]
Output Current1.00 A [Max]
Peak Reverse Voltage20 V [Max]
Forward Voltage (Vf)410.00 mV @ 1.0 mA
Reverse Leakage Current200.00 nA @ 15.0 V
Capacitance1.200 pF [Max]
PackagingTape & Reel
Breakdown Voltage20.00 V [Min]
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names HSMS 2813 TR2G
HSMS2813TR2G
