HT36A0

Features: · Operating voltage: 3.6V~5.0V·Operating frequency: 3.58MHz~12MHz (typ. 11.059MHz)·28 bidirectional I/O lines·Two 16-bit programmable timer/event counters with overflow interrupts·Watchdog Timer·Built-in 8-bit MCU with 2088 bits RAM·Built-in 64KX16-bit ROM for program/data shared·Digita...

product image

HT36A0 Picture
See larger image
SeekIC No. : 004366659 Detail

HT36A0: Features: · Operating voltage: 3.6V~5.0V·Operating frequency: 3.58MHz~12MHz (typ. 11.059MHz)·28 bidirectional I/O lines·Two 16-bit programmable timer/event counters with overflow interrupts·Watchdog...

HT36A0 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT36A0
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 3.6V~5.0V
· Operating frequency: 3.58MHz~12MHz (typ. 11.059MHz)
· 28 bidirectional I/O lines
· Two 16-bit programmable timer/event counters with overflow interrupts
· Watchdog Timer
· Built-in 8-bit MCU with 2088 bits RAM
· Built-in 64KX16-bit ROM for program/data shared
· Digital output pins for external DAC
· Single data format with 16 bits digital stereo audio output
· Two High D/A converter resolution: 16 bits
· Polyphonic up to 16 notes
· Independent pan and volume mix can be assigned to each sound component
· Sampling rate of 44.1kHz as 11.059MHz for system frequency
· Eight-level subroutine nesting
· HALT function and wake-up feature to reduce power consumption
· Bit manipulation instructions
· 16-bit table read instructions
· 63 powerful instructions
· All instructions in 1 or 2 machine cycles
· 48-pin SSOP package


Pinout

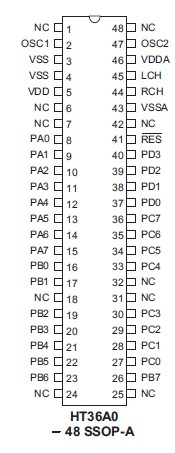

Connection Diagram


Specifications

Supply Voltage .........................................-0.3V to 6V
Storage Temperature ..........................-50 to 125
Input Voltage ...........................VSS-0.3V to VDD+0.3V
Operating Temperature ..........................-25 to 70

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT36A0 is an 8-bit high performance RISC-like microcontroller specifically designed for music applications. It provides an 8-bit MCU and a 16 channel wavetable synthesizer. The program ROM is composed of both program control codes and wavetable voice codes, and can be easily programmed.

The HT36A0 has a built-in 8-bit microprocessor which programs the synthesizer to generate the melody by setting the special register from 20H~2AH. A HALT feature is provided to reduce power consumption.
