Product Details

Description



Features:

· Operating voltage: 2.4V~12V
·Low power and high noise immunity CMOS technology
·Low standby current
·Minimum transmission word
·Four words for TE trigger
·One word for Data trigger
·Built-in oscillator needs only 5% resistor
·Easy interface with an RF or an infrared transmission medium
·Minimal external components
·Package information: refer to Selection Table




Application

· Burglar alarm system
·Smoke and fire alarm system
·Garage door controllers
·Car alarm system
·Security system
·Cordless telephones
·Other remote control systems

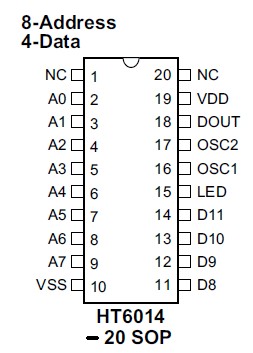

Pinout

Connection Diagram






Specifications

Supply Voltage...............................-0.3V to 13V
Input Voltage....................VSS-0.3 to VDD+0.3V
Storage Temperature.................-50 to 125
Operating Temperature ..............-20 to 75

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The 312 encoders HT6014 are a series of CMOS LSIs for remote control system applications. They are capable of encoding 12 bits of information which consists of N address bits and 12-N data bits. Each address/data input is externally trinary programmable if bonded out. They are otherwise set floating internally. Various packages of the 312 encoders offer flexible combinations of programmable address/data which meet various applications. The programmable address/data is transmitted together with the header bits via an RF or an infrared transmission medium upon receipt of a trigger signal. A TE (HT6010) or a DATA (HT6012/HT6014) trigger can be selected for application flexibility.
