Part Number: HT7510
Description: The HT7510 is a CMOS digital clinical thermometer IC for measuring body temperature in Centigrade (°C)...
- Table of contents:
HT7510
-
Suppliers
DataSheet
General Description
HT7510 General Description
The HT7510 is a CMOS digital clinical thermometer IC for measuring body temperature in Centigrade (°C) or Fahrenheit (°F) mode by its bonding option. The main function of HT7510 is the same as HT7500. When interfaced with HT84018-0D, HT7510 can provide voice report function. It also provides alarm and auto power off functions. The other electronic components are LCD display, thermister, 3.0V battery, ON/OFF switch, buzzer, resistors and capacitors.
HT7510 Maximum Ratings
Supply voltage......................................0V to 5V
Input voltage .................VSS0.5V to VDD+0.5V
Operation Temperature.............20 to +75
Storage Temperature..............55 to +125
Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.
Input voltage .................VSS0.5V to VDD+0.5V
Operation Temperature.............20 to +75
Storage Temperature..............55 to +125
Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.
HT7510 Features
· Single-chip CMOS construction
· Measurement range: +32.0°C~+42.0°C (+90.0~+108.0°F)
Measurement accuracy: ±0.1°C (±0.2°F)
Resolution: 0.1°C (0.1°F)
· Single 3.0V battery operation
· Bonding option for Centigrade/Fahrenheit measurement
· Highest temperature hold
· Auto power off after 8 min. 40 sec
· One key input switch ON/OFF
· Display the last measured temperature
· Low voltage detection for 2.4V
· Interface with HT84018-0D to provide voice report function (Refer to HT84XXX data sheet for detail specification)
· Measurement range: +32.0°C~+42.0°C (+90.0~+108.0°F)
Measurement accuracy: ±0.1°C (±0.2°F)
Resolution: 0.1°C (0.1°F)
· Single 3.0V battery operation
· Bonding option for Centigrade/Fahrenheit measurement
· Highest temperature hold
· Auto power off after 8 min. 40 sec
· One key input switch ON/OFF
· Display the last measured temperature
· Low voltage detection for 2.4V
· Interface with HT84018-0D to provide voice report function (Refer to HT84XXX data sheet for detail specification)

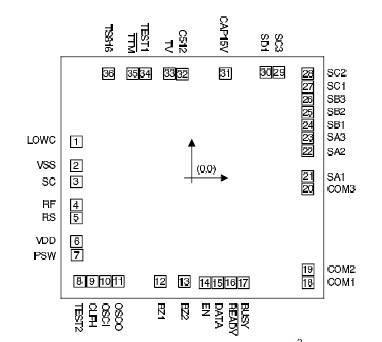

HT7510 Connection Diagram
HT7510
PDF/DataSheet Download
- Datasheet: HT7510
- File Size: 339053 KB
- Manufacturer: HOLTEK [Holtek Semiconductor Inc]
- Click here to Download
