Product Details

Description

Features:

` Single-chip CMOS construction
` Single 1.5V battery operation
` Measurement range: +32.00~+43.00
Measurement accuracy: ±0.1
Resolution: 0.01
` Auto self-test
` Alarm warning for fever
` Highest temperature hold
` Auto power off after 8 min 40 sec
` One-key input switch for ON/OFF
` Displays last time measured temperature

Pinout

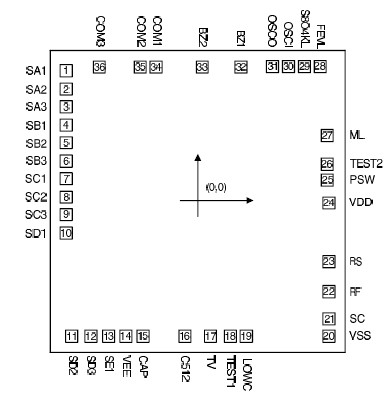

Connection Diagram

Specifications

Supply voltage................................0V to 2.0V
Input voltage..............V_SS0.5V to V_DD+0.5V
Operation Temperature..........20 to +75
Storage Temperature................55+125

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.

Description

The HT7501 is a CMOS digital clinical thermometer IC for measuring body temperature from 32.00C~43.00C. It also provides alarm, self-test, auto power off and last time measured temperature functions. The other electronic components are LCD display, thermister, 1.5V battery, ON/OFF switch, buzzer, resistors and capacitors.
