HT82M98A

Features:

Complete Universal Serial Bus specs V1.0
compatibility
Serial Bus Interface Engine (SIE)
USB transceiver
Microsoft 3D Intelli mouse and IBM PS/2 mouse compatible
Supports three buttons (R, M, L) and three axes (X, Y, Z) input
Z axis can support two kinds of scroller in-put (optomechanical and mechanical)
Single chip solution especially for USB mouse function
Halt function and wake-up feature reduce power consumption
Plug and Play functions
Minimal external components
6MHz crystal oscillator for system clock
18-pin DIP package

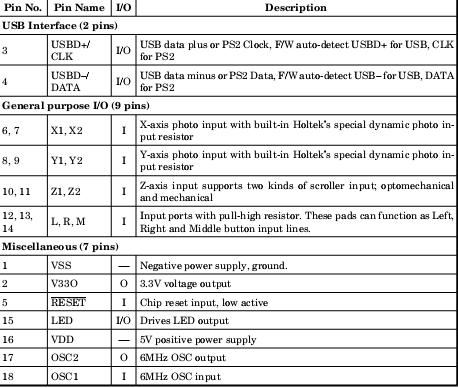

Pinout






Specifications

Supply Voltage.................................0.3V to 6V
Input Voltage..................V_SS0.3V to V_DD+0.3V
USB Input Voltage.......V_SS 0.3V to V₃₃₀ +0.3V
Storage Temperature....................50Cto125
Operating Temperature .................25Cto70

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maxi mumRatings"maycausesubstantialdamagetothedevice.Functionaloperationofthisdevice at other conditions beyond those listed in the specification is not implied and prolonged expo- sure to extreme conditions may affect device reliability.




Description

HT82M98Ais a 3D mouse controller especially designed for USB and PS/2 applications. The HT82M98A cansupporttheUSBStandardRe- quest as well as HID Class Request version 1.0 draft 4. It is compatible with Microsoft Intelli 3D PS/2 mouse. The X/Y axis photo input with built-in Holteks special dynamic photo-input resistor and Z axis can support two kinds of scroller input, namely; optomechanical and mechanical. It requires minimal external com-
ponents to implement 3D USB plus PS/2 mouse. It can be briefly described as a Holtek 8-bitC with an on-chip USB interface logic. The USB is specified by the Universal Serial Bus Specification V1.0.
