HT82V804

Features: ` Operating voltage: 3.0V~5.5V` Built-in seven circuits- 2-level output: 2 circuits for vertical CCD clock driver output voltage level (typ.) = -9V to 0V- 3-level output: 2 circuits for vertical CCD clock driver output voltage level (typ.) = -9V to 15V- 2-level output: 1 circuit for shut...

product image

HT82V804 Picture
See larger image
SeekIC No. : 004367111 Detail

HT82V804: Features: ` Operating voltage: 3.0V~5.5V` Built-in seven circuits- 2-level output: 2 circuits for vertical CCD clock driver output voltage level (typ.) = -9V to 0V- 3-level output: 2 circuits for ve...

HT82V804 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT82V804
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage: 3.0V~5.5V
` Built-in seven circuits
- 2-level output: 2 circuits for vertical CCD clock driver output voltage level (typ.) = -9V to 0V
- 3-level output: 2 circuits for vertical CCD clock driver output voltage level (typ.) = -9V to 15V
- 2-level output: 1 circuit for shutter driver output voltage level (typ.) = -9V to 15V
` Switchable between NTSC (EIA) and PAL (CCIR) modes
` 16-pin SSOP (150mil) package


Pinout

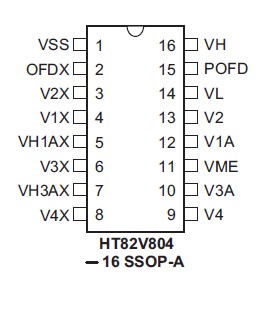

Connection Diagram


Specifications

Supply Voltage .............................VSS-0.3V to VL+35V
Input Voltage .............................VSS-0.3V to VH+0.3V
Storage Temperature ...........................-55 to 150
Operating Temperature ..........................-25 to 70

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

HT82V804 is a CMOS vertical clock driver and shutter driver IC for CCD area sensors. It has the capability of converting the voltage and impedance from the CMOS level.
