General Description
HT9032 General Description
The HT9032 calling line identification receiver is a low power CMOS integrated circuit designed for receiving physical layer signals transmitted according to Bellcore TR-NWT-000030 and ITU-T V.23 specifications. The primary application of this device is for products used to receive and display the calling number, or message waiting indicator sent to subscribers from the central office facilities. The device also provides a carrier detection circuit and a ring detection circuit for easier system applications
HT9032 Maximum Ratings
Voltages are referenced to VSS, except where noted.
Supply Voltage....................................-0.5V to 6.0V
All Input Voltages ..........................................25mW
Operating Temperature Range.................0 to 70
Storage Temperature Range .............-40 to 150
Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings " may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.
HT9032 Features
·HT9032B/C/D operating voltage: 3.5V~5.5V
HT9032F operating voltage: 3.0V~5.5V
·Bell 202 FSK and V.23 demodulation
·Ring detection input and output
·Carrier detection output
·Power down mode
·High input sensitivity
·HT9032C: 16-pin DIP/SOP package
HT9032B/F-A: 8-pin DIP package
HT9032D/F-B: 8-pin SOP package
HT9032F operating voltage: 3.0V~5.5V
·Bell 202 FSK and V.23 demodulation
·Ring detection input and output
·Carrier detection output
·Power down mode
·High input sensitivity
·HT9032C: 16-pin DIP/SOP package
HT9032B/F-A: 8-pin DIP package
HT9032D/F-B: 8-pin SOP package
HT9032 Typical Application
· Feature phones
· Caller ID adjunct boxes
· Fax and answering machines
· Computer telephony interface products
· ADSI products
· Caller ID adjunct boxes
· Fax and answering machines
· Computer telephony interface products
· ADSI products

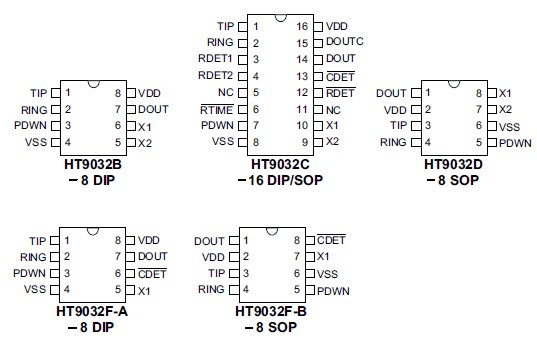

HT9032 Connection Diagram
HT9032
PDF/DataSheet Download
- Datasheet: HT9032
- File Size: 228229 KB
- Manufacturer: HOLTEK [Holtek Semiconductor Inc]
- Click here to Download
