Features:

` Universal specification
` Operating voltage: 2.0V~5.5V
` Low standby current
` Low memory retention current: 0.1A (Typ.)
` Tone/pulse switchable
` Interface with LCD driver
` 32 digits for redialing
` 32 digits for the SA memory dialing
` One-key redialing
` Pause and PT key for PBX
` 4x5 keyboard matrix
` 3.58MHz crystal or ceramic resonator
` Hand-free control
` Hold-line control
` Pause, PT can be saved for redialing
` Lock function
` Keytone function
` Resistor options:
- M/B ratio
- Flash function and flash time (86ms~600ms)
- Pause and PT duration
- Pulse number
- Keyboard operated IDD lock function
` Keyboard form
` HT9315A/HT9315AL: 18-pin DIP package
    HT9315B/HT9315BL: 22-pin SKDIP package
    HT9315C/HT9315CL: 20-pin DIP package
    HT9315D/HT9315DL: 24-pin SKDIP package


Pinout

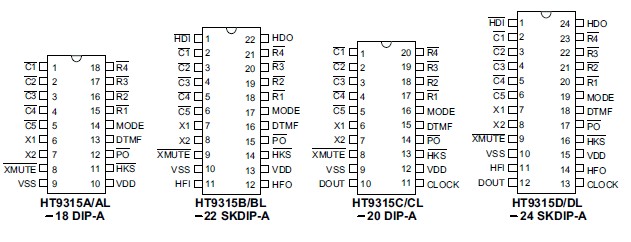

Connection Diagram


Specifications

Supply Voltage ...........................................-0.3V to 6V
Input Voltage .............................. VSS-0.3 to VDD+0.3V
Storage Temperature .......................... -50  to 125
Operating Temperature ..........................-20  to 75

Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings  may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT9315 series tone/pulse dialers are CMOS LSIs for telecommunication systems. They are designed to meet various dialing specifications through resistor option matrix. The series are offered in two different versions.

They are HT9315x normal version and HT9315xL lock version, with keyboard-operated IDD lock function. The two versions also supply the following functions: Hold-line, Hand-free and LCD dialing number display interface, all of which are suitable for feature phone applications.
