Purchase HVM14S, In-stock HVM14S From SeekIC.
MFG:RENESAS Package Cooled:SOT23 D/C:04+
- Table of contents:
HVM14S
-
Suppliers
DataSheet
General Description
HVM14S Maximum Ratings
Item |
Symbol |
Ratings |
Unit |
| Reverse voltage | VR |
50 |
V |
| Forward current | IF |
50 |
mA |
| Power dissipation | Pd*1 |
100 |
mW |
| Junction temperature | Tj |
125 |
|
| Storage temperature | Tstg |
-55 to +125 |
HVM14S Features
` Low forward resistance. (rf =7.0max)
` Low capacitance. (C=0.25pF typ)
` MPAK package is suitable for high density surface mounting and high speed assembly.
` Low capacitance. (C=0.25pF typ)
` MPAK package is suitable for high density surface mounting and high speed assembly.

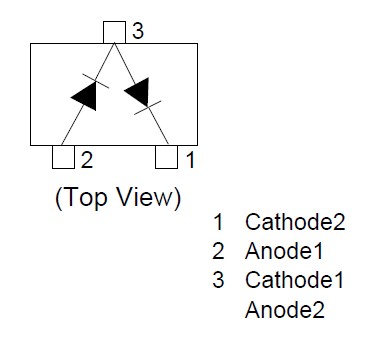

HVM14S Connection Diagram
HVM14S
PDF/DataSheet Download
- Datasheet: HVM14S
- File Size: 29042 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
